Description

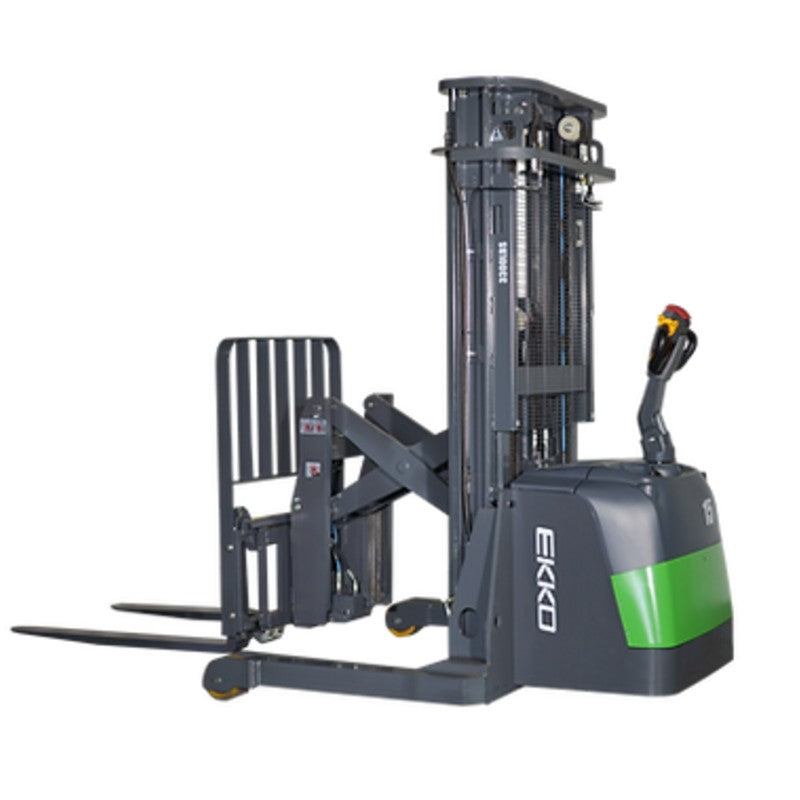

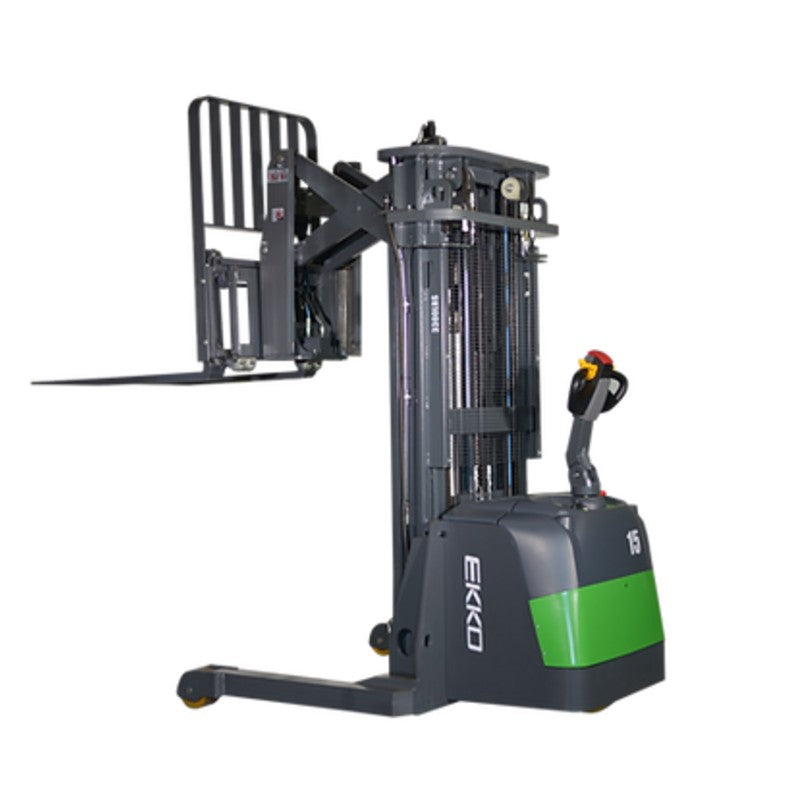

EKKO ER15-189Li Reach Truck
The EKKO ER15-189Li Lithium Walkie Reach Truck combines the versatility of a forklift, reach truck, and walkie stacker, with a 3300 lb capacity and 189" lift height. It is suitable for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Constructed with high-quality steel and components, it features durable drives designed to withstand various terrain, usage, impacts, and directional changes for dependable performance.
- Load Capacity 3300 lb
- Raised Height 189" (15.75ft)
- Reach Distance of 19.7"
- Side Shift
- Tilt
- Free Lift 64.2"
- Fork Length 42"
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- 24V AC Drive Motor
- 24V Lift Motor
- Battery 24V/150Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Lift Control Valve
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
Product Info
|
Model |
|
ER15-189Li |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
3300 |
|
Load center distance |
(in) |
24 |
|
Lifting height |
(in) |
189 |
|
Side Shift |
|
Y |
|
Lowered mast height |
(in) |
86.2 |
|
Overall length |
(in) |
86.6 |
|
Overall width (body/legs) |
(in) |
32.3/59.1 |
|
Fork size, Thick/Width/Length |
(in) |
1.38/3.9/45.3 |
|
Fork width |
(in) |
32.2 |
|
Reach Distance |
(in) |
19.7 |
|
Turning radius |
(in) |
63.4 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
(KW) |
AC 1.5 |
|
EPS Steering Motor |
|
AC Speed Control |
|
Lifting Motor |
(KW) |
4.5 |
|
Battery voltage |
(V/Ah) |
24V/150Ah Lithium |
|
Service Weight |
(lb) |
4550 |
