Description

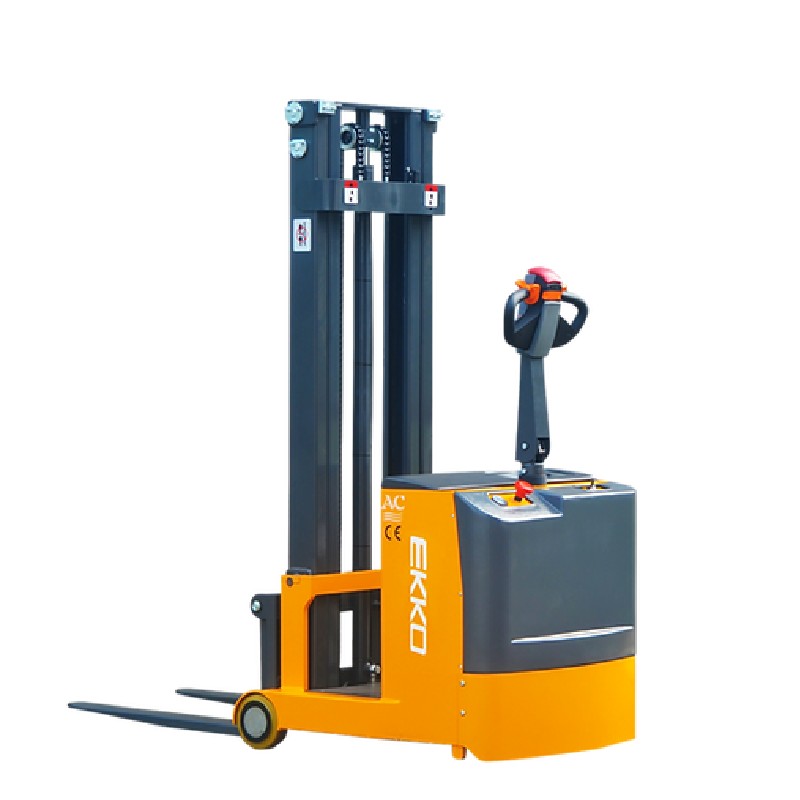

EKKO EK07S Counterbalance Walkie Stacker – 1550 lbs. Capacity
The EKKO EK07S Fully Powered Counterbalance Walkie Stacker combines the versatility of a forklift and a walkie stacker for a range of material handling applications. With a 1550 lbs. capacity, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Made from high-quality steel and components with durable drives, it is designed to withstand terrain, usage, impact, and directional changes for supported applications.
- Load Capacity 1550lbs.
- Raised Height 118" (9.83ft)
- Adjustable Forks 8.3-25.2"
- Fork Length 42"
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- On-Board Charger Included
- BatterY Included
- 3 Years Limited Warranty
Product Info
|
Model |
|
EK07S |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lbs) |
1550 |
|
Load center distance |
(in) |
20 |
|
Lifting height |
(in) |
118 |
|
Lowered mast height |
(in) |
81.1 |
|
Overall length |
(in) |
84.7 |
|
Overall width |
(in) |
34.5 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/2.9/42 |
|
Fork adjust width |
(in) |
8.3-25.2 |
|
Turning radius |
(in) |
51 |
|
Internal Charger |
|
24V/20A |
|
Driving Motor |
|
AC 24V/0.75kw |
|
Lifting Motor |
|
24V/1.5kw |
|
Battery voltage |
|
24V/120AH |
|
Service Weight |
(lbs) |
2090 |
