Description

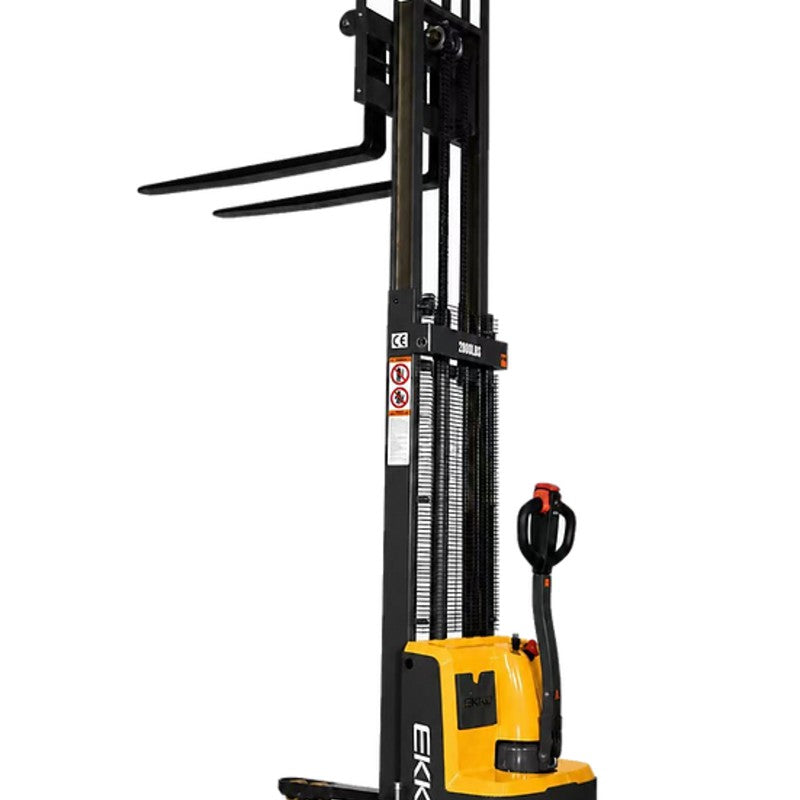

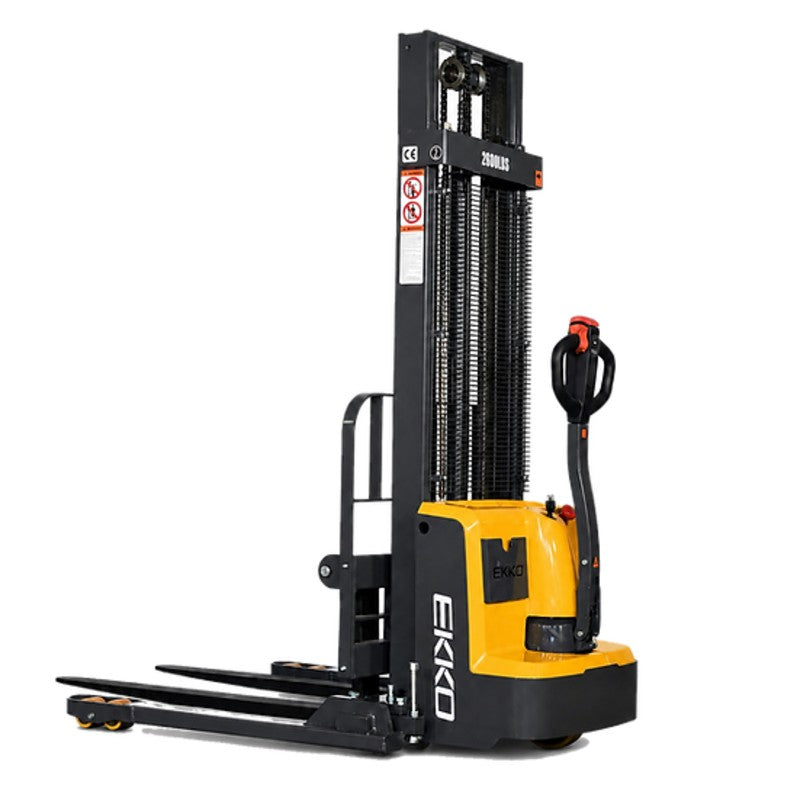

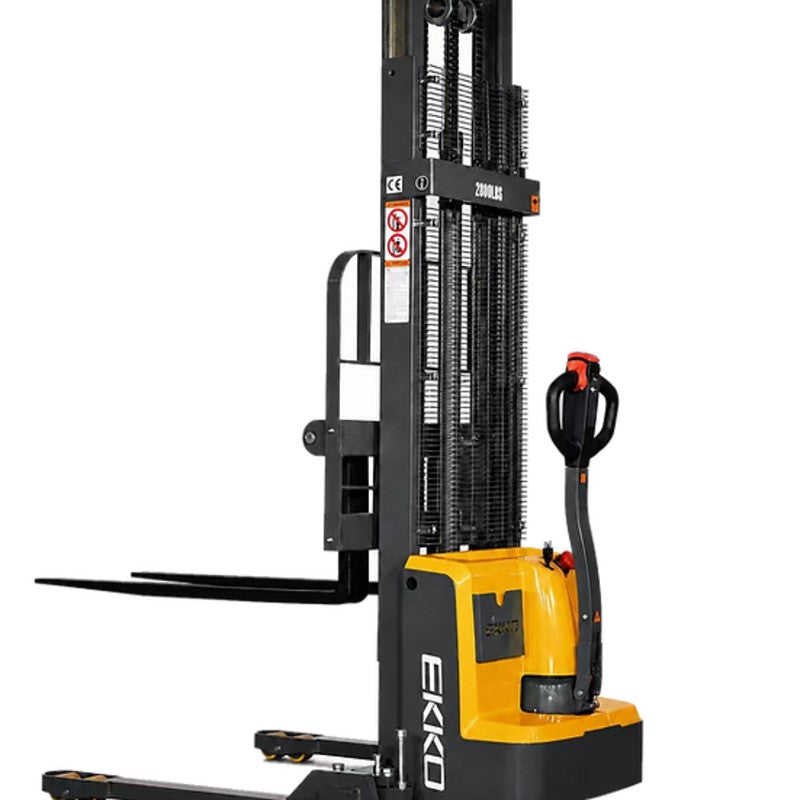

EKKO EB13E Full Powered Straddle Stacker – 2800 lb Capacity, 119" Height
The EKKO EB13E Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker for a range of material handling applications. With a 2800 lb capacity and 119" height, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Made from high-quality steel and components with durable drives, it is designed to withstand terrain, usage, impact, and directional changes for supported applications.
- Load Capacity 2800 lb
- Raised Height 119”
- Adjustable Forks 8.3-33.5“
- Adjustable Legs 45.7-59.1”
- Fork Length 45.3“
- Curtis Instrument Controller
- 24V Center Drive Motor
- 24V Lift Motor
- Battery 2*12V/100Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Product Info
|
Model |
|
EB13E |
|
Load capacity |
(lbs) |
2800 |
|
The max. lifting height |
(in) |
119” |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Overall fork width |
(in) |
8.3-33.5 |
|
Lowered fork height |
(in) |
2.35 |
|
Fixed leg length |
(in) |
36.5 |
|
Adjustable legs |
(in) |
45.5-59.1 |
|
Turning radius |
(in) |
52.6 |
|
Overall length |
(in) |
70 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
135 |
|
Lowered mast height |
(in) |
82 |
|
Battery voltage (dimensions) |
(in) |
2×12V/100AH（10/6.6/8.5） |
|
Internal Charger |
V/A |
24V/15A |
|
Lifting Motor |
V/Kw |
2.2kw. Lift speed, laden/unladen:92/136mm/s Lowering speed, laden/unladen:112/98mm/s |
|
Driving Motor |
|
0.75kw.Driving speed: laden/unladen:4.0/4.2km/h |
|
Service Weight |
(lbs) |
1420 |
