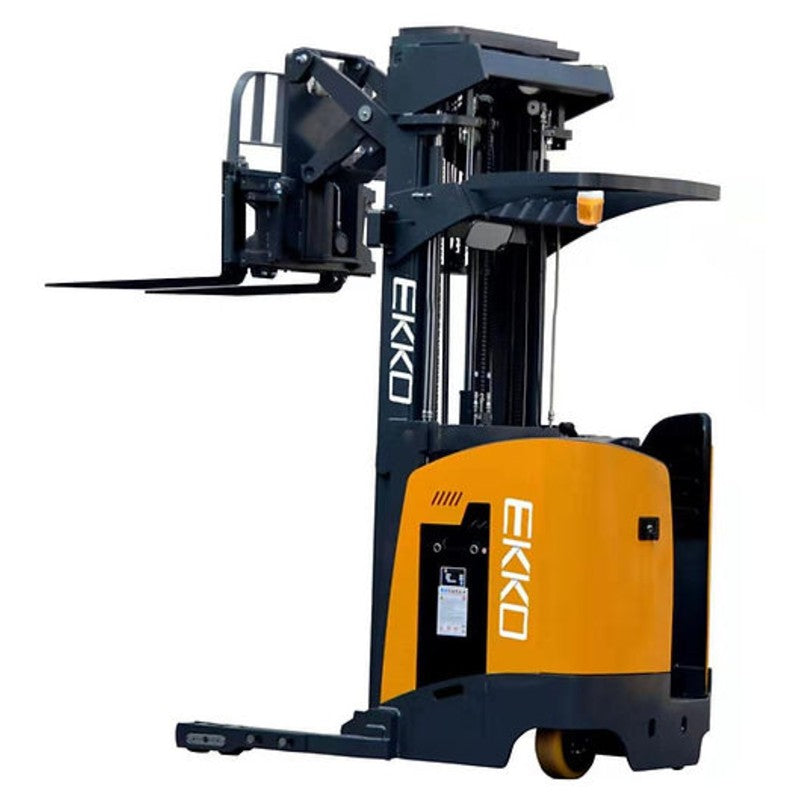

EKKO EK18RRL Stand-Up Narrow Aisle Reach Truck – 4000 lb Capacity, 196" Lift Height
The EKKO EK18RRL Stand-Up Narrow Aisle Reach Truck combines the versatility of a forklift, reach truck, and walkie stacker for a range of material handling demands. With a 4000 lb capacity and 196" lift height, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Made from high-quality steel and components with durable drives, it is designed to withstand terrain, usage, impact, and directional changes across supported applications.
- Load Capacity 4000 lb
- Raised Height 196" (16.33ft)
- Reach Distance of 22.44"
- Side Shifting Forks
- Free Lift
- Tilt
- Adjustable Forks 7.9-35.04"
- Fork Length 42"
- Triple Mast
- Curtis Instrument Controller
- EPS (Electronic Power Steering)
- German AC Drive Motor
- Battery 48V/420Ah
- Charger 480V 3-phase (standard)
-
Available Options (additional cost): 220V 3‑phase | 110V single‑phase
-
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Batteries Included
- 3 Years Limited Warranty
Product Info
|
Model |
|
EK18RRL |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lb) |
4000 |
|
Load center distance |
(in) |
24 |
|
Lifting height |
(in) |
196 |
|
Side Shifting Forks |
|
3 Way Valve |
|
Free Lift |
(in) |
53.15 |
|
Lowered mast height |
(in) |
96.42 |
|
Overall length/Extended |
(in) |
102.28 |
|
Overall width |
(in) |
54.72 |
|
Fork size, Thick/Width/Length |
(in) |
1.58/4.72/42 |
|
Fork adjust width |
(in) |
35.04 |
|
Reach Distance |
(in) |
22.44 |
|
Turning radius |
(in) |
75 |
|
Charger |
(V/A) |
48V/65A |
|
Driving Motor |
(V/W) |
48V/6000 |
|
EPS Steering Motor |
(V/W) |
Yes |
|
Lifting Motor |
(V/W) |
48V/11000 |
|
Battery voltage |
(V/Ah) |
48V/420Ah |
|
Service Weight |
(lb) |
8500 |
