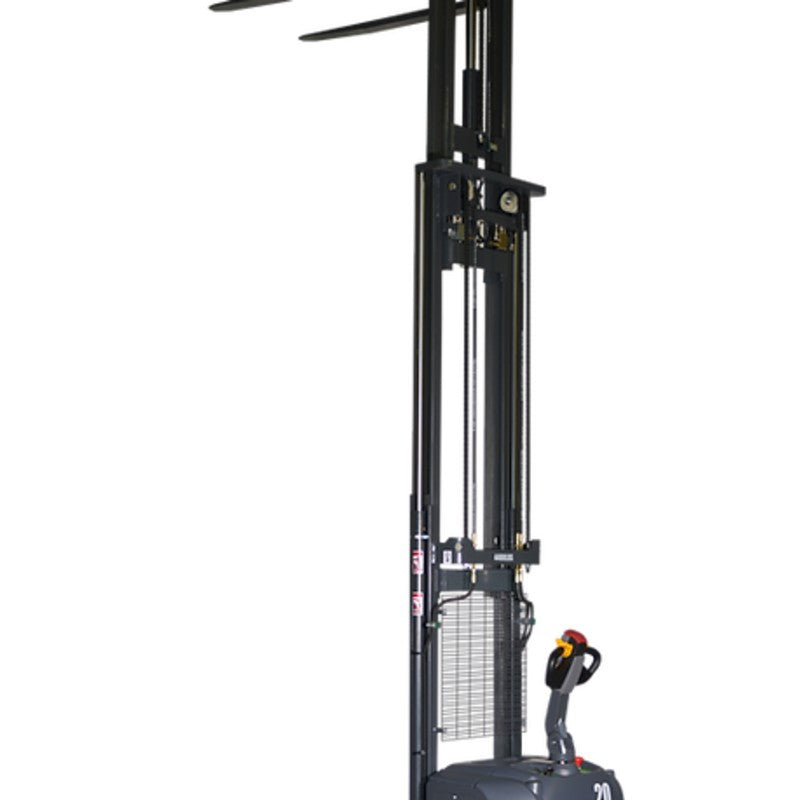

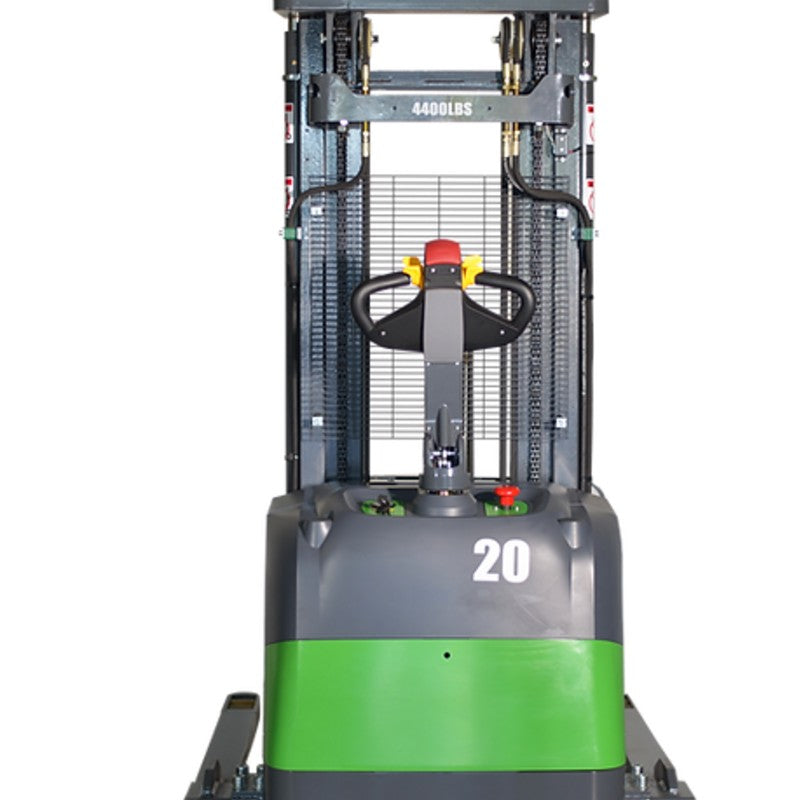

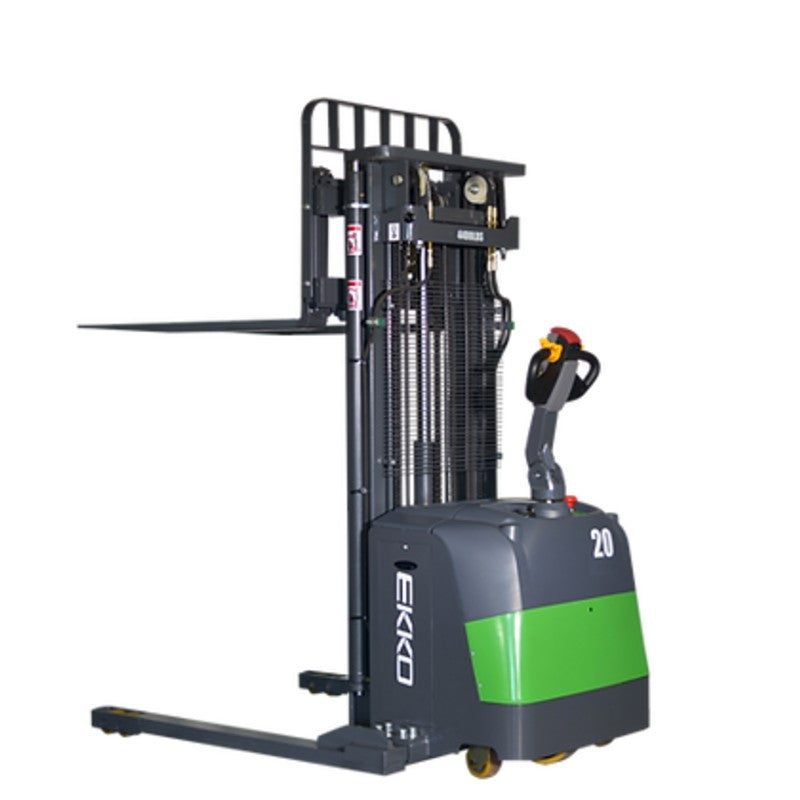

EKKO EB20CS-177LI Full Powered Straddle Stacker 4400 lb Capacity, 177" Height
The EKKO EB20CS-177LI Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker in a durable design. With a 4,400 lb capacity and 177" lift height, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Made from high-quality steel and components with durable quality drives, it is designed to withstand terrain, usage, impact, and directional changes for demanding material handling applications.
- Load Capacity 4400 lbÂ
- Raised Height 177" (14.75ft)
- Side Shift
- Adjustable Forks 8.7-32.1"
- Adjustable Legs 39.8-55.5"
- Fork Length 45.3"
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Triple Mast
- Battery 24V/150Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 24V/50A Included
- Batteries Included
Product Info
|
Model |
 |
EB20CS-177LI |
|
Load capacity |
(lb) |
4400 |
|
The max. lifting height |
(in) |
177 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
3.9 |
|
Overall fork width |
(in) |
8.7-32.1 |
|
Lowered fork height |
(in) |
2.6 |
|
Overall Length |
(in) |
81.9 |
|
Adjustable legs |
(in) |
39.8-55.5 |
|
Turning radius |
(in) |
65 |
|
Min. Ground clearance |
(in) |
1.2 |
|
Extended mast height |
(in) |
206.3 |
|
Lowered mast height |
(in) |
79.3 |
|
Battery voltage |
(V/Ah) |
24/150Ah Lithium |
|
Charger |
(V/A) |
24V/50A |
|
Lifting Motor |
(W) |
3,000 |
|
Driving Motor |
(W) |
1500W |
|
Service Weight |
(lb) |
2970 |
