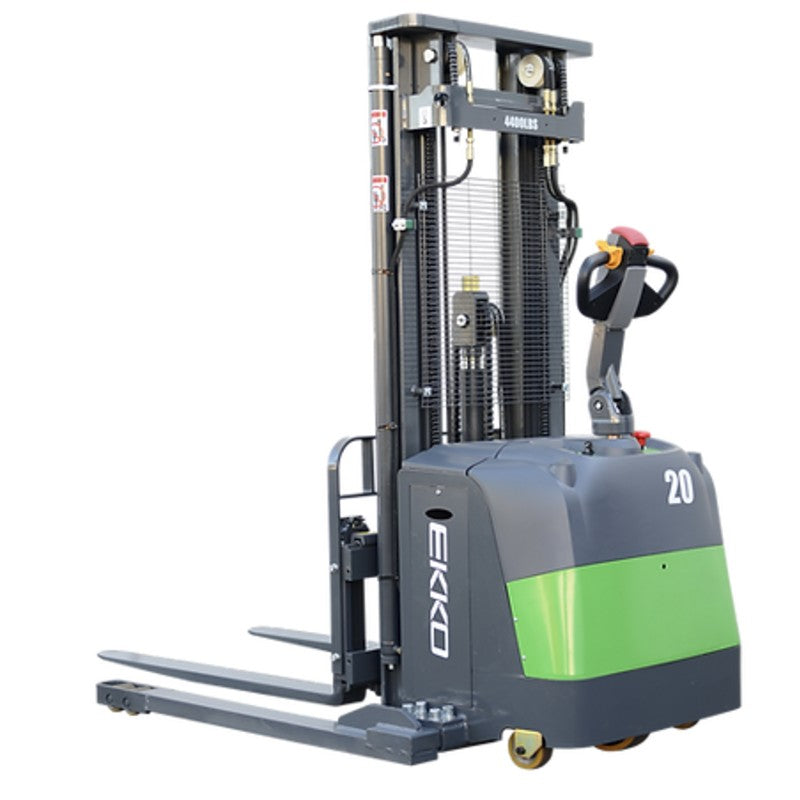

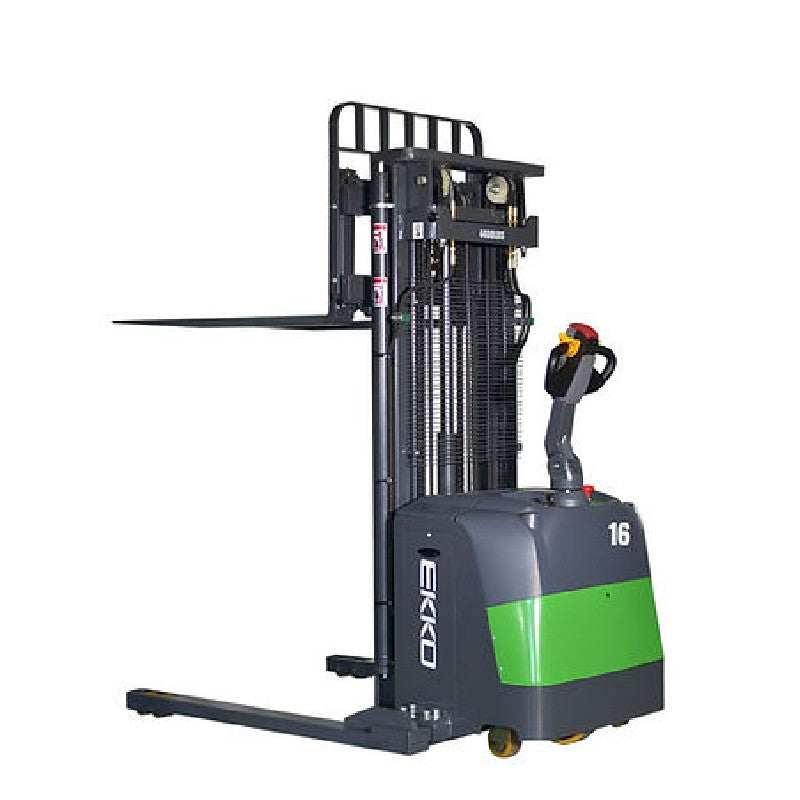

EKKO EB16EAS-189Li Lithium Straddle Stacker 4400 lb Cap., 189" Height, SIDE-SHIFT
by EKKO
$19,198.00
The EKKO EB16EAS-189Li Lithium Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker with side-shifting capabilities, a 4,400 lb capacity, and 189" height. Made from high-quality steel and components with durable drives, it is designed to withstand terrain, usage, impact, and directional changes. This straddle stacker is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing.
|
Model |
 |
EB16EAS-189Li |
|
Load capacity |
(lb) |
4400 |
|
The max. lifting height |
(in) |
189 |
|
Load center distance |
(in) |
24 |
|
Free Lift |
(in) |
51.85 |
|
EPS (Elec. Power Steer) |
 |
Yes |
|
Fork length |
(in) |
45.3 |
|
SIDE-SHIFT |
(in) |
4.7 |
|
Overall fork width |
(in) |
8.27-32.1 |
|
Lowered fork height |
(in) |
1.57 |
|
Fixed leg length |
(in) |
42 |
|
Adjustable legs |
(in) |
39.8-55.5 |
|
Turning radius |
(in) |
60 |
|
Overall length |
(in) |
83.26 |
|
Max width |
(in) |
46.93-60.71 |
|
Extended mast height |
(in) |
227 |
|
Lowered mast height |
(in) |
88.86 |
|
Battery voltage |
(V/Ah) |
24/150 |
|
Charger |
(V/A) |
24V/50A |
|
Lifting Motor |
(kW) |
3 |
|
AC Driving Motor |
(kW)Â |
1.5 |
|
Service Weight |
(lb) |
3520 |
Buying warehouse equipment is a serious investment. Rhino Warehouse Supply makes the process easier with responsive service, straightforward product guidance, and personalized support from your first question through delivery.
We’re committed to helping you find the right equipment for your operation—without the confusion or guesswork.
Shipping rates are calculated based on the product and delivery destination and will be shown at checkout when available. Many of our larger warehouse and material handling products ship via freight.
Once your order is placed, our team will coordinate shipment with the supplier and carrier to help ensure a smooth delivery. If any additional information is needed before shipment, we’ll contact you directly.
