Description

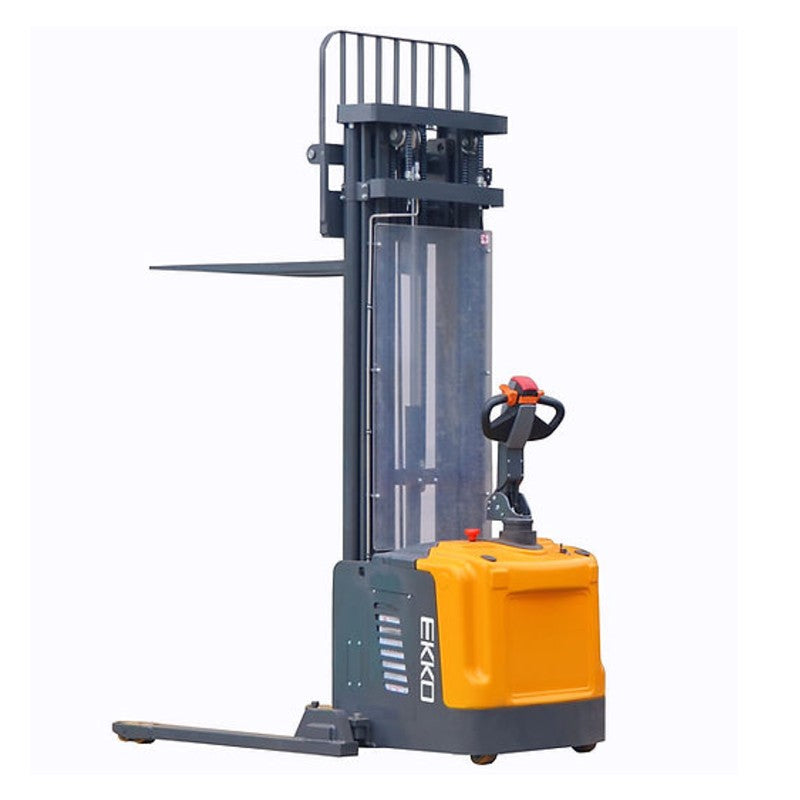

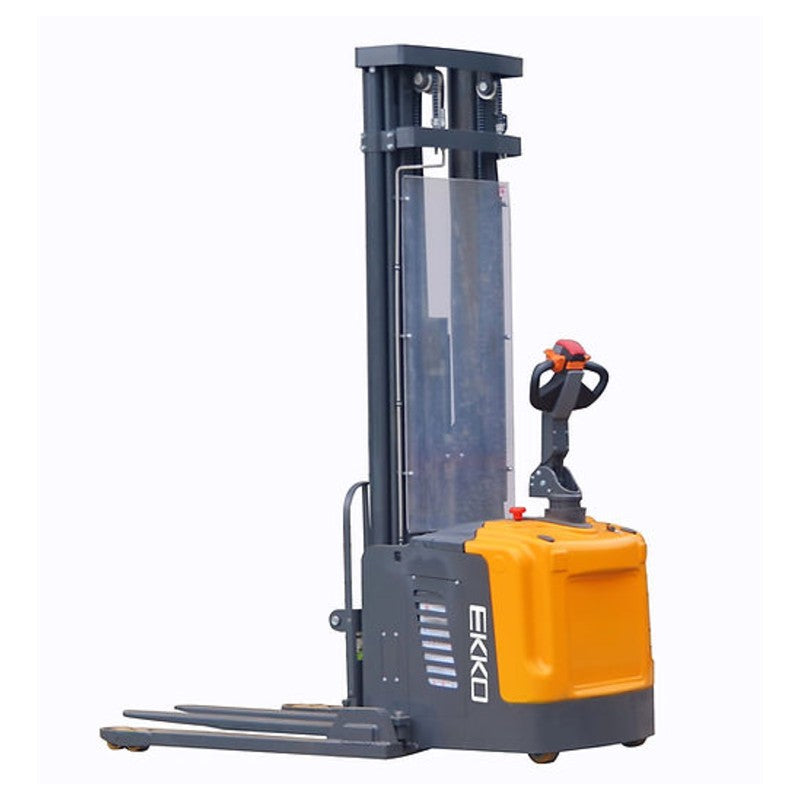

EKKO EB16EA Full Powered Straddle Stacker – 4400 lb Capacity, 216" Height
The EKKO EB16EA Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker for a range of material handling applications. With a 4400 lb capacity and 216" height, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Made from high-quality steel and components with durable drives, it is designed to withstand terrain, usage, impact, and directional changes for supported applications.
- Load Capacity 4400 lb
- Raised Height 216”
- Adjustable Forks 9.8-31.5“
- Adjustable Legs 38.06-51.8”
- Fork Length 45.28“
- Free Lift 76.25”
- EPS (Electric Power Steering)
- Curtis Instrument Controller
- 24V Center AC Drive Motor
- 24V Lift Motor

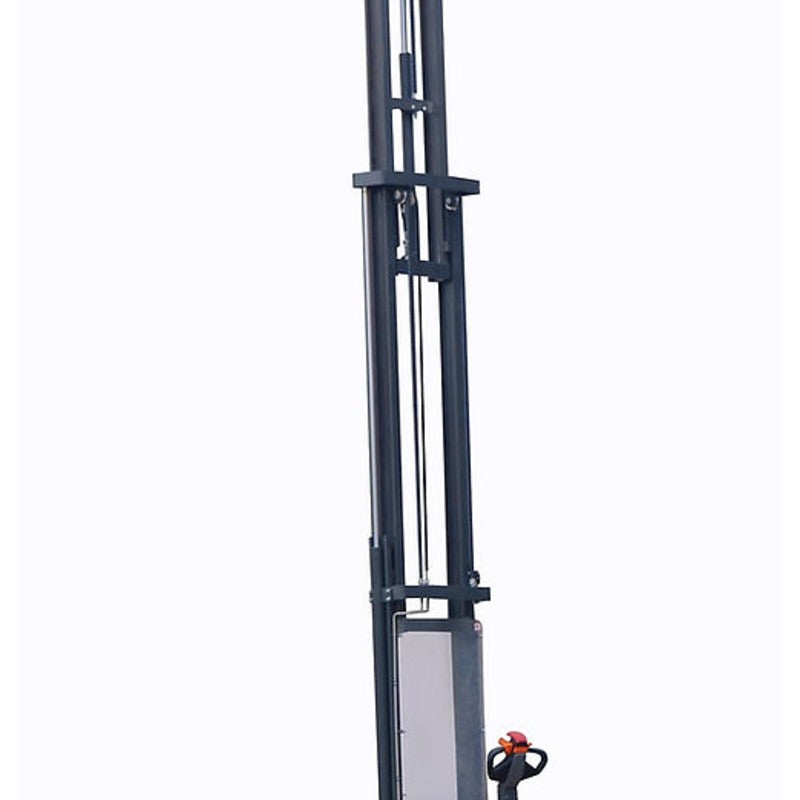

- Triple Mast
- Battery 24V/210Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- 3 Year Limited Warranty
Product Info
|
Model |
|
EB16EA |
|
Load capacity |
(lb) |
4400 |
|
The max. lifting height |
(in) |
216 |
|
Load center distance |
(in) |
24 |
|
Free Lift |
(in) |
76.25 |
|
EPS (Elec. Power Steer) |
|
Yes |
|
Fork length |
(in) |
45.28 |
|
Single fork width |
(in) |
4.7 |
|
Overall fork width |
(in) |
9.8-31.5 |
|
Lowered fork height |
(in) |
1.58 |
|
Fixed leg length |
(in) |
42 |
|
Adjustable legs |
(in) |
38.06-51.81 |
|
Turning radius |
(in) |
69.09 |
|
Overall length |
(in) |
81.69 |
|
Max width |
(in) |
46.93-60.71 |
|
Extended mast height |
(in) |
253.15 |
|
Lowered mast height |
(in) |
98.03 |
|
Battery voltage |
(V/Ah) |
24/210Ah |
|
Charger |
(V/A) |
24V/30A |
|
Lifting Motor |
(W) |
3000 Watt, Lift speed, laden/unladen:95/160m/s Lowering speed, laden/unladen:130/110mm/s |
|
AC Driving Motor |
(W) |
3000 Watt, Driving speed: laden/unladen: 5.2/5.5km/h |
|
Service Weight |
(lb) |
3560 |
