Description

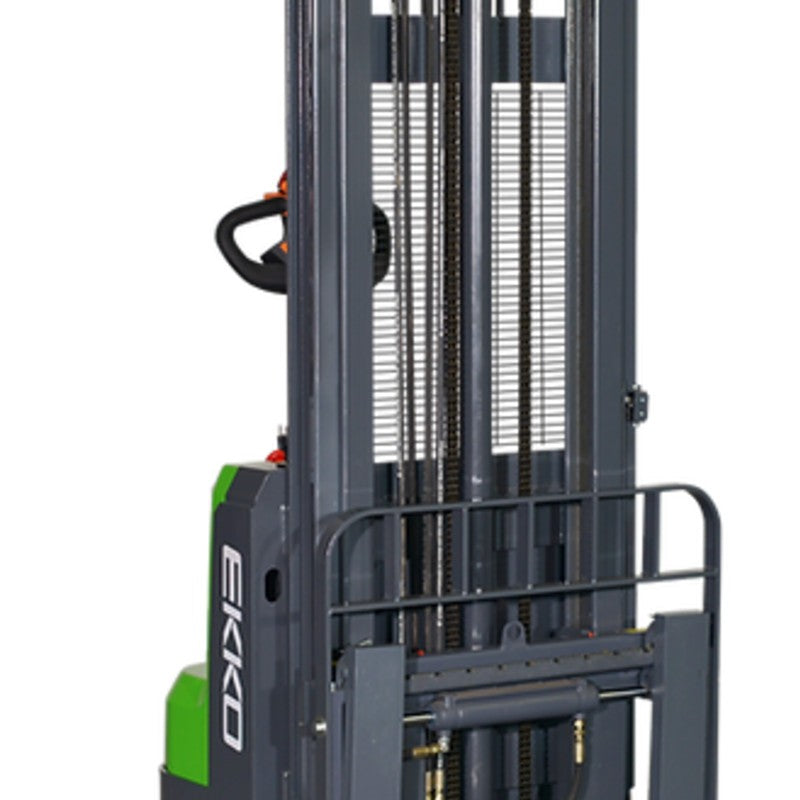

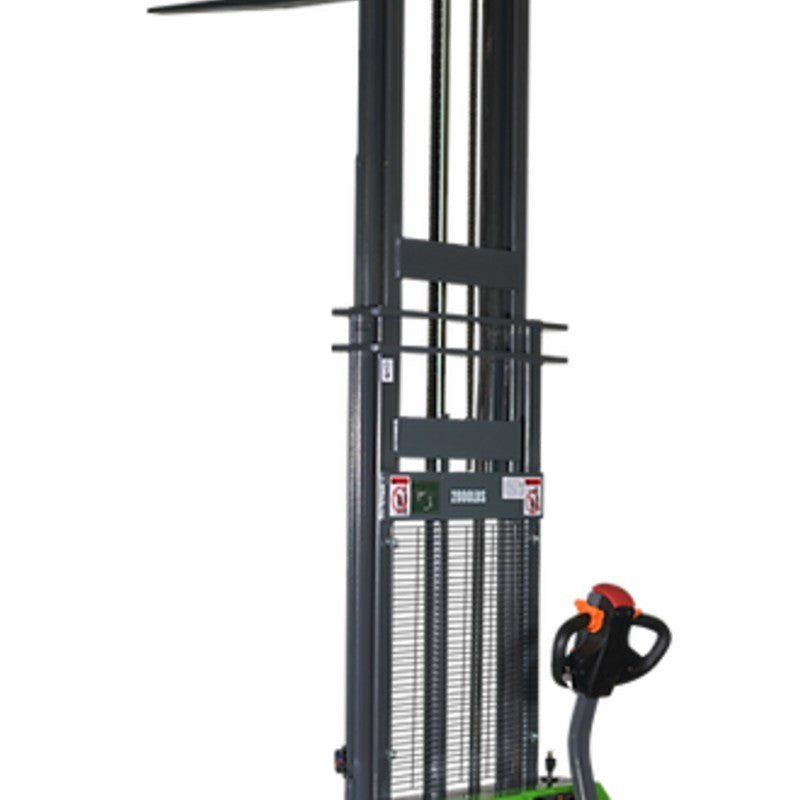

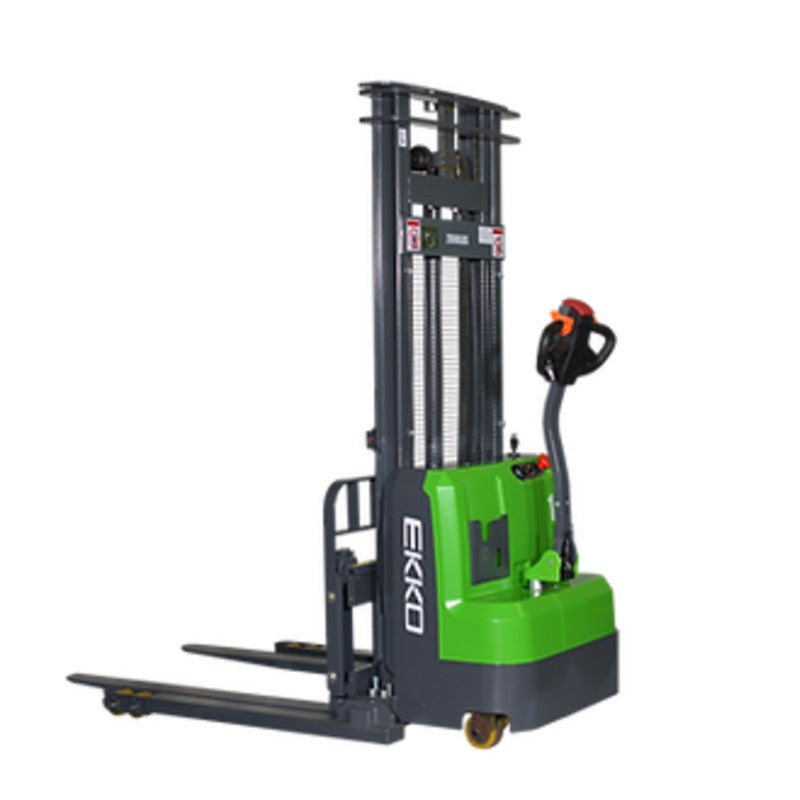

EKKO EB14CS-138Li Lithium Straddle Stacker 3000 lb Capacity, 138" Height, Side Shift
The EKKO EB14CS-138Li Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker in a durable design. With a 3,000 lb capacity, 138" lift height, and Side Shift, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Made from high-quality steel and components with durable quality drives, it is designed to withstand terrain, usage, impact, and directional changes, while the dual damping drive system provides stronger handling performance, efficiency, and operator comfort.
- Load Capacity 3000Â lb
- Raised Height 138” (11.5 ft.)
- Side Shift
- Adjustable Forks 8.7-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/50Ah Lithium
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Dual Damping Drive System
- Steel Construction
Product Info
|
Model |
 |
EB14CS-138LI |
|
Load capacity |
(lbs) |
3000 |
|
The max. lifting height |
(in) |
138 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Fork Adjustment Width |
(in) |
8.7-32.1 |
|
Lowered fork height |
(in) |
2.6 |
|
Adjustable legs |
(in) |
35.4-51.2 |
|
Turning radius |
(in) |
57.5 |
|
Overall length |
(in) |
73.7 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
166.9 |
|
Lowered mast height |
(in) |
91.5 |
|
Battery voltage |
(V/Ah) |
24V/50Ah Lithium |
|
Internal Charger |
V/A |
24V/20 |
|
Lifting Motor |
Kw |
2.2 kw |
|
Driving Motor |
 |
DC Drive Motor |
|
Service Weight |
 (lbs) |
1780 |
