Description

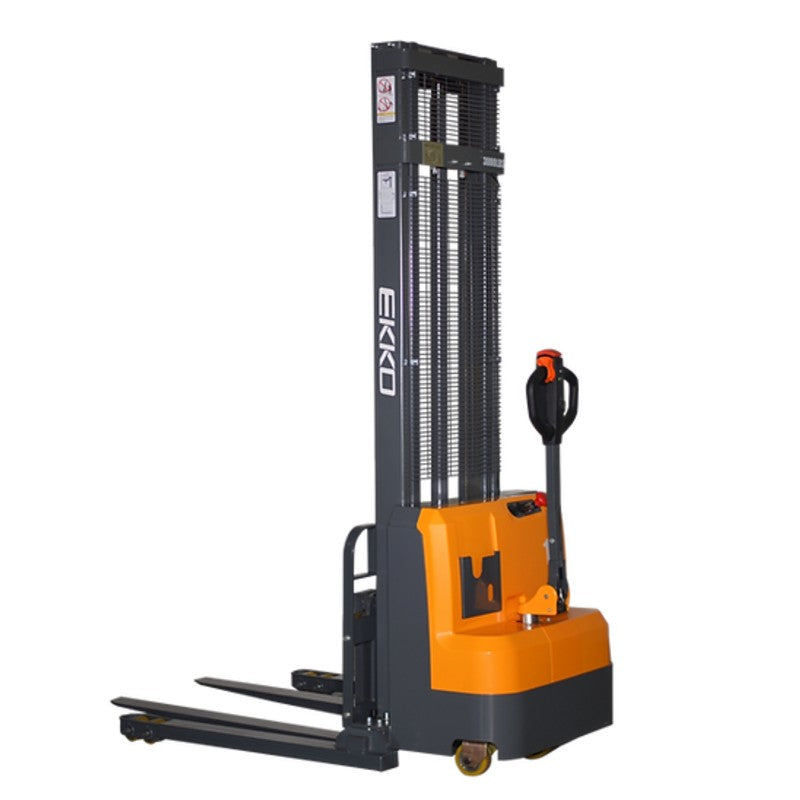

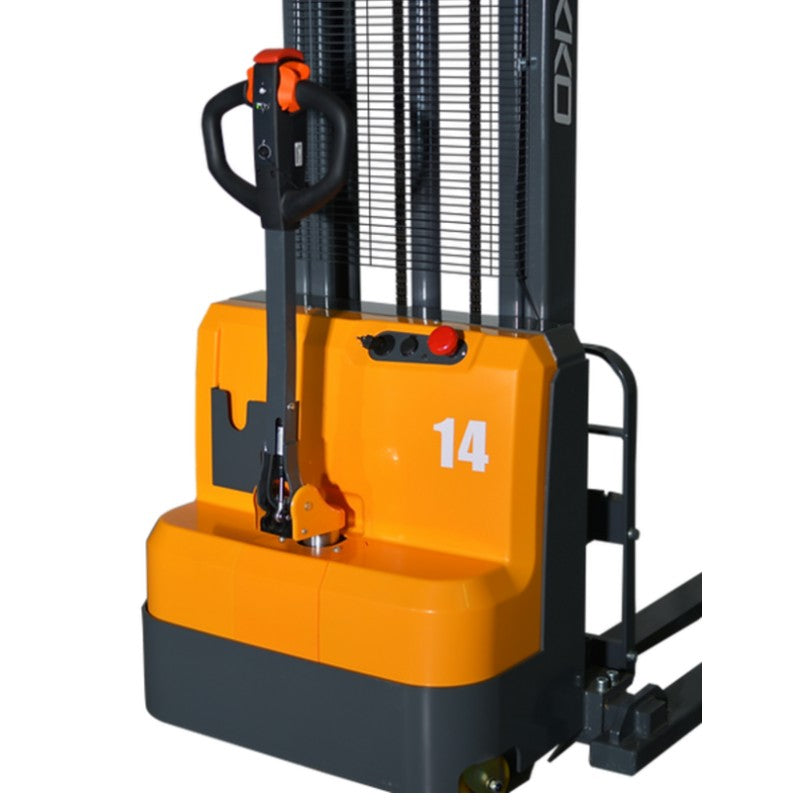

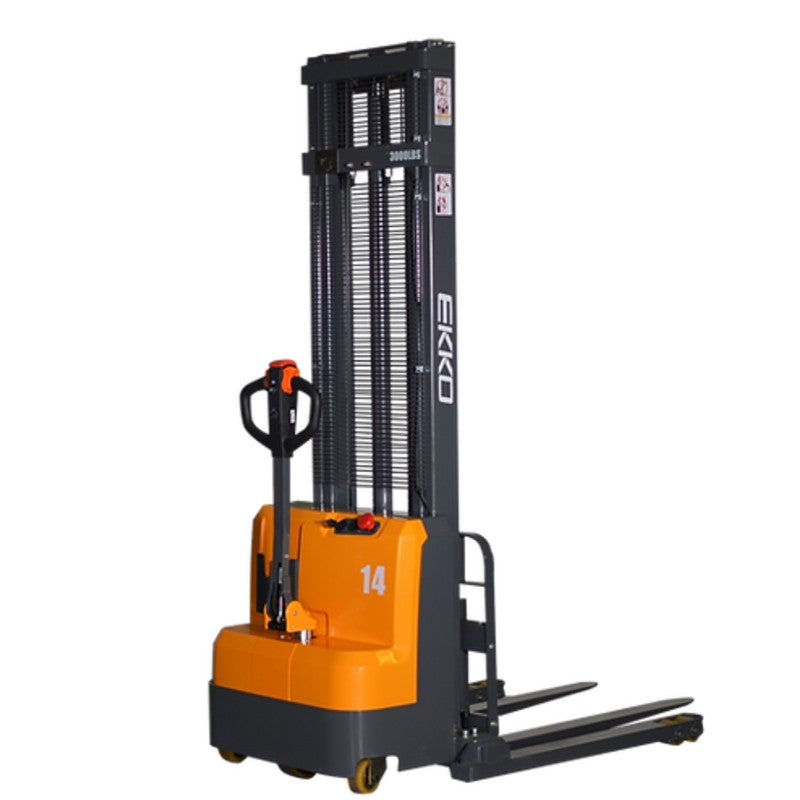

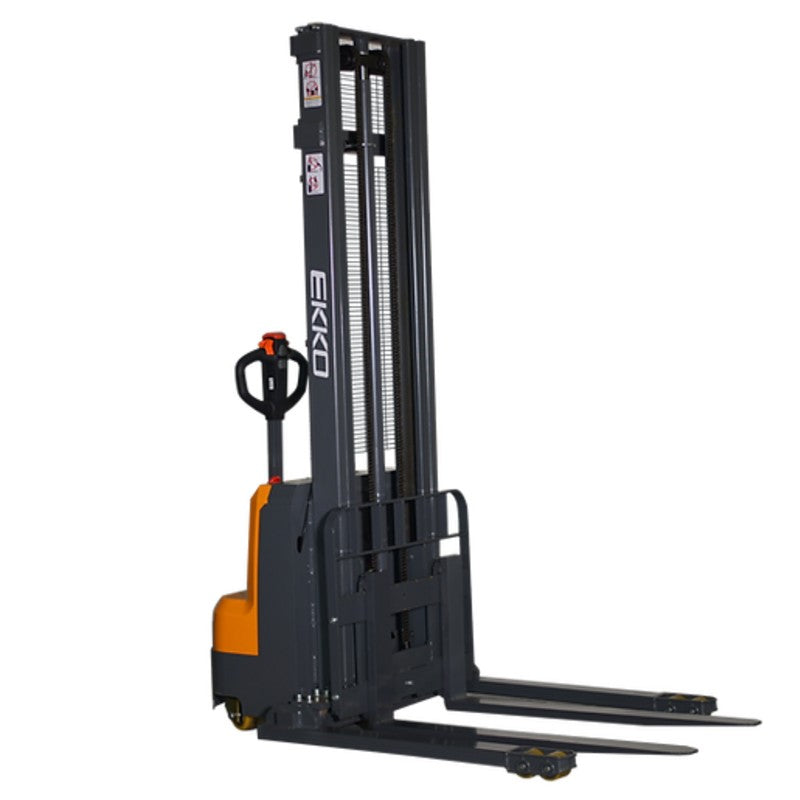

EKKO EB14C-138 Full Powered Straddle Stacker – 3000 lb Capacity, 138" Height
The EKKO EB14C-138 Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker for a range of material handling applications. With a 3000 lb. capacity and 138" height, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Made from high-quality steel and components with durable drives, it is designed to withstand terrain, usage, impact, and directional changes. Its dual damping drive system enhances handling performance, operational efficiency, and operator comfort.
- Load Capacity 3000 lb
- Raised Height 138” (11.5 ft.)
- Adjustable Forks 8.7-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 2 × 12V/85Ah (24V total)
- Polyurethane Wheels

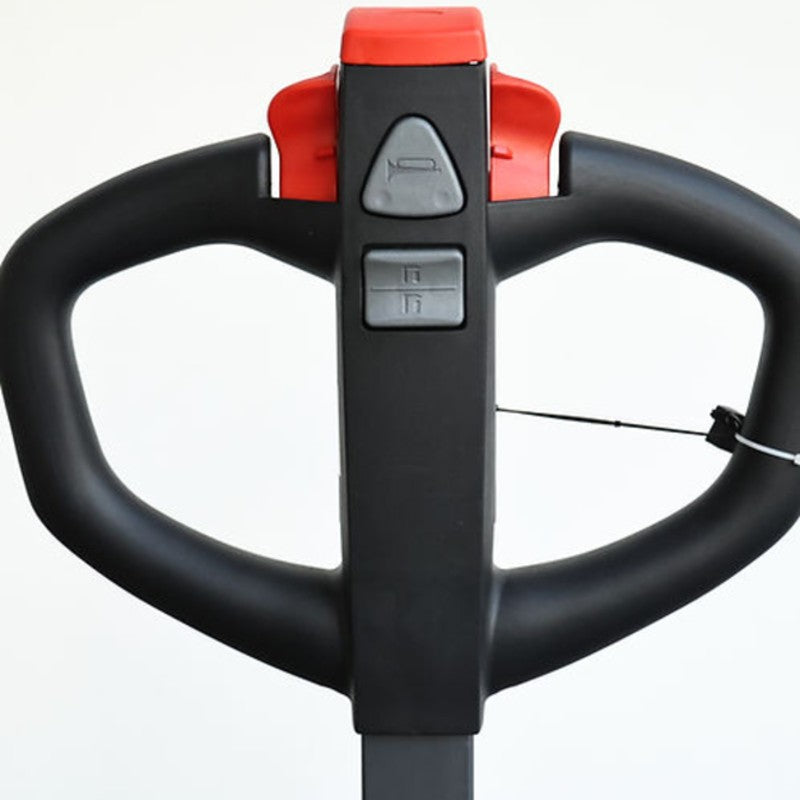

- Ergonomic Handle and Controls
- Dual Damping Drive System
- Steel Construction
Product Info
|
Model |
|
EB14C-138 |
|
Load capacity |
(lbs) |
3000 |
|
The max. lifting height |
(in) |
138 |
|
Load center distance |
(in) |
20 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Fork Adjustment Width |
(in) |
8.7-32.1 |
|
Lowered fork height |
(in) |
2.6 |
|
Adjustable legs |
(in) |
35.4-51.2 |
|
Turning radius |
(in) |
57.5 |
|
Overall length |
(in) |
73.7 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
166.9 |
|
Lowered mast height |
(in) |
94.2 |
|
Battery voltage |
(V/Ah) |
24V/85Ah |
|
Internal Charger |
V/A |
24V/10 |
|
Lifting Motor |
Kw |
2.2 kw |
|
Driving Motor |
|
DC Drive Motor |
|
Service Weight |
(lbs) |
1470 |
