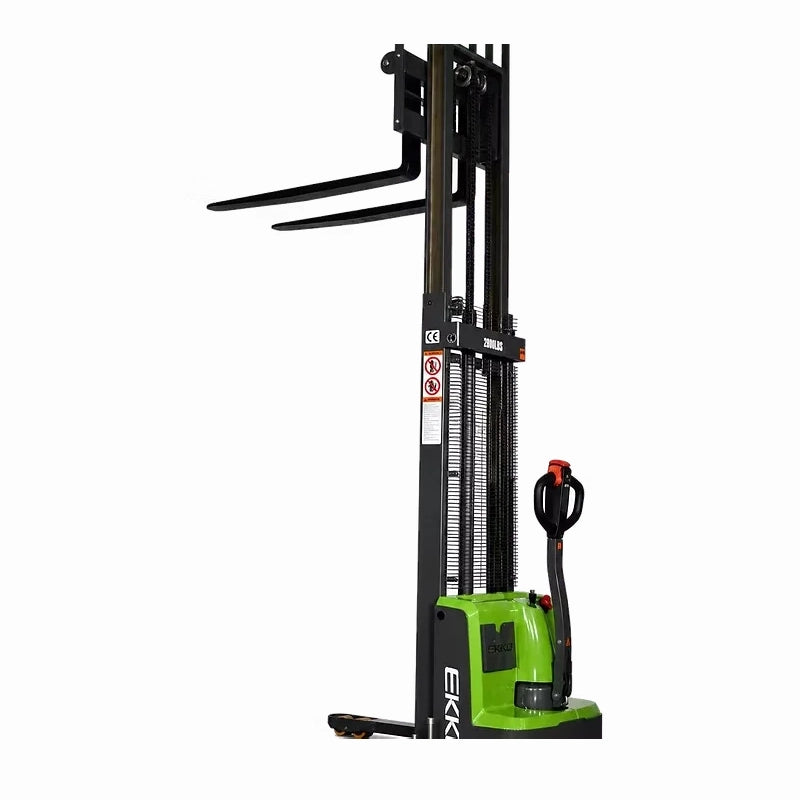

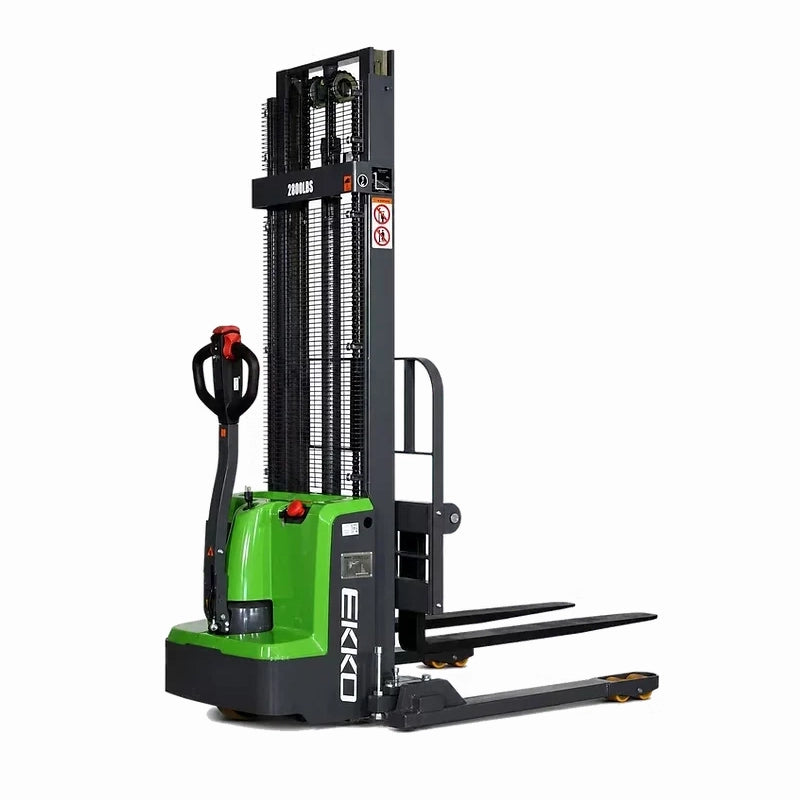

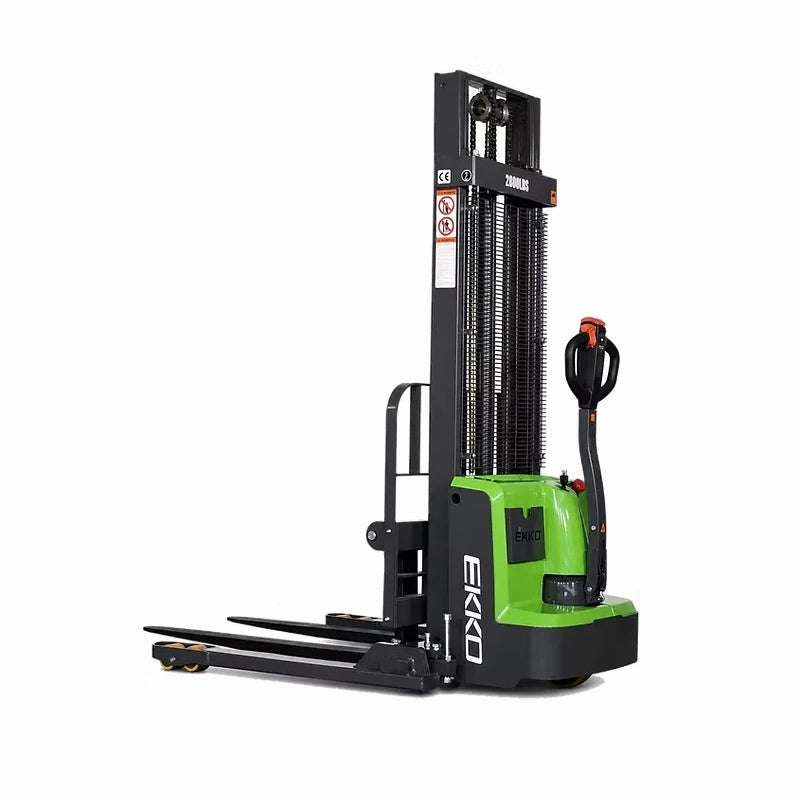

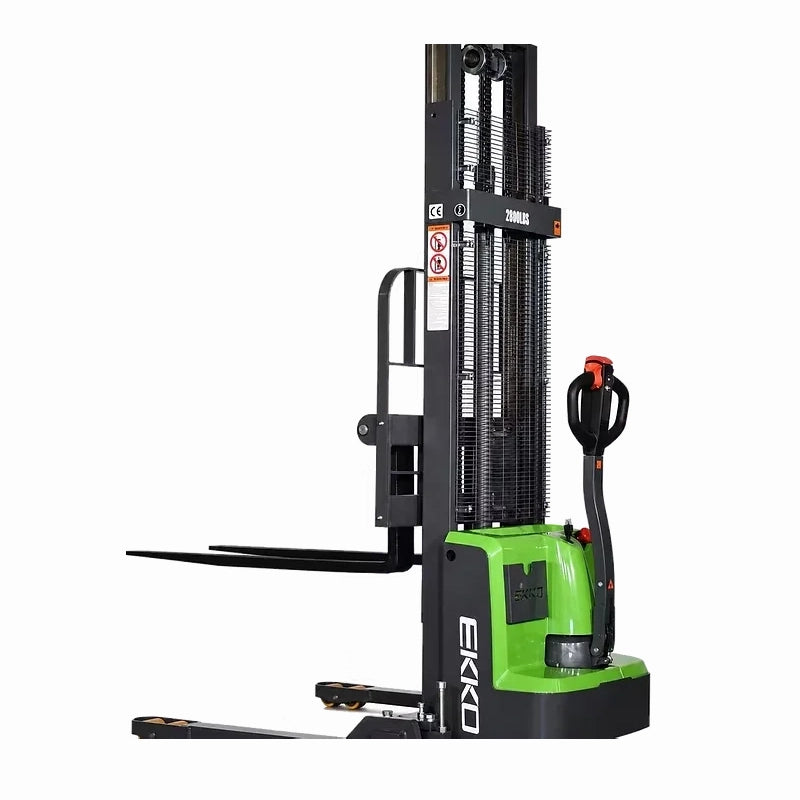

EKKO EB13ES-Li 2,800 lb Lithium Electric Straddle Stacker with Side Shift
Compact, fully powered pallet lifting for modern warehouses, stockrooms, and distribution operations.
The EKKO EB13ES-Li Lithium Electric Straddle Stacker combines electric lifting performance, flexible pallet handling, and compact maneuverability in a practical walk-behind design. With a 2,800 lb rated load capacity, 119-inch maximum lift height, and integrated side-shift functionality, this stacker is designed for efficient pallet transport, positioning, and elevated storage.
Powered by a 24V/50Ah lithium iron phosphate (LiFePO4) battery, the EB13ES-Li provides fully electric travel and lifting without tailpipe emissions. Its 24V electric drive system and hydraulic lifting motor support warehouse operations where precise load handling and compact equipment are essential.
Unlike fixed-leg pallet stackers, the EB13ES-Li features adjustable straddle legs and adjustable forks, providing greater flexibility when working with compatible pallet sizes and storage configurations.
The combination of its compact chassis, polyurethane wheels, ergonomic operating handle, and Curtis® controller makes it an effective material handling solution for warehouses, manufacturing facilities, stockrooms, and distribution centers.
Key Features & Benefits
- 2,800 lb Rated Load Capacity: Supports palletized goods and warehouse materials at a 24-inch rated load center.
- 119-Inch Maximum Lift Height: Provides vertical lifting reach for pallet stacking, elevated storage, and material positioning.
- 24V/50Ah LiFePO4 Battery: Rechargeable lithium battery technology supplies power for electric travel and lifting.
- Fully Powered Electric Operation: Electric drive and hydraulic lifting functions reduce the need for manual material movement.
- Integrated Side Shift: Allows lateral adjustment of the fork carriage for more accurate pallet positioning.
- Adjustable Straddle Legs: Adjustable width supports different compatible pallet and load configurations.
- Adjustable Fork Width: Fork spacing from 8.3 to 33.5 inches provides flexibility for compatible loads.
- 45-Inch Fork Length: Provides practical support for compatible palletized materials.
- Curtis® Instrument Controller: Supports equipment control and battery status monitoring.
- 2.2 kW Hydraulic Lift Motor: Provides powered lifting performance for warehouse storage applications.
- 0.75 kW Electric Drive Motor: Supplies powered travel performance for daily material movement.
- Polyurethane Wheels: Designed for compatible smooth warehouse and industrial flooring.
- Compact Turning Radius: A 52.6-inch turning radius helps support maneuverability in confined working areas.
- Ergonomic Walkie Controls: Convenient tiller-mounted functions support operator control.
- Electromagnetic Braking: Provides electric braking functionality for the stacker's drive system.
- Heavy-Duty Steel Construction: Robotic-welded steel components support durability during routine industrial use.
- Internal Battery Charger: Manufacturer-listed 24V/15A charger provides an integrated charging solution.
- 3-Year Limited Warranty: Manufacturer-listed warranty, subject to applicable conditions.
Built for Efficient Pallet Stacking and Warehouse Storage
The EKKO EB13ES-Li is designed for businesses needing a compact electric stacker capable of handling palletized goods and supporting elevated storage.
Its 119-inch maximum lifting height makes it suitable for compatible warehouse racking systems and material placement tasks. The integrated side-shift function provides additional positioning flexibility by allowing lateral fork carriage adjustment.
With adjustable forks and straddle legs, the EB13ES-Li accommodates a variety of compatible pallet dimensions and workplace configurations.
Lithium-Powered Material Handling
The EB13ES-Li uses lithium iron phosphate battery technology to power its electric drive and lifting systems.
The rechargeable 24V/50Ah battery provides an alternative to conventional fuel-powered material handling equipment, with no tailpipe emissions during operation.
An integrated 24V/15A charger supports battery charging, while the electric motors provide powered travel and lifting functionality.
For facilities seeking battery-powered warehouse equipment, the EB13ES-Li offers a compact option for regular pallet movement and material stacking.
Adjustable Straddle Legs and Side-Shift Functionality
A major advantage of the EB13ES-Li is its combination of adjustable straddle legs, adjustable forks, and side shift.
The straddle configuration allows the support legs to be positioned around compatible loads, while the adjustable forks accommodate different pallet widths.
The side-shift feature supports accurate pallet alignment without requiring the entire stacker to be repositioned for every minor lateral adjustment.
These features make the EB13ES-Li a versatile option for businesses handling different pallet configurations in their warehouses.
Compact Design for Limited Warehouse Space
The EKKO EB13ES-Li features a 70-inch overall length, maximum overall width of 61 inches, and a compact 52.6-inch turning radius.
Its walk-behind configuration helps businesses manage pallet movement in stockrooms, loading areas, and warehouse spaces where larger industrial forklifts may be impractical.
Polyurethane wheels and an ergonomic control handle further support warehouse-oriented material handling.
Common Applications
- Warehouse pallet stacking and storage
- Distribution center inventory movement
- Manufacturing and production facilities
- Stockroom material handling
- Loading dock operations
- Pallet positioning and retrieval
- Logistics and fulfillment facilities
- Industrial inventory organization
- Small and medium-sized warehouse operations
Why Choose the EKKO EB13ES-Li?
The EB13ES-Li combines electric lifting, lithium battery technology, compact dimensions, and flexible pallet-handling features in one practical straddle stacker.
Its integrated side shift distinguishes it from basic stackers that lack lateral fork adjustment, while its adjustable straddle legs provide additional flexibility for compatible pallet configurations.
With a 2,800 lb rated capacity, 119-inch lift height, polyurethane wheels, and Curtis® controller, the EB13ES-Li provides businesses with a capable solution for everyday warehouse material handling.
Choose the EKKO EB13ES-Li for efficient lithium-powered pallet stacking, precise side-shift positioning, and dependable 2,800 lb lifting performance.
Technical Product Specifications
| Specification | Value |
|---|---|
| Brand | EKKO |
| Model | EB13ES-Li |
| Manufacturer SKU | EB13ES-Li |
| Equipment Type | Electric Straddle Stacker |
| Operation Type | Walk-Behind / Walkie |
| Drive / Lift Operation | Fully Electric |
| Battery Technology | Lithium Iron Phosphate (LiFePO4) |
| Rated Load Capacity | 2,800 lbs |
| Load Center Distance | 24 in |
| Maximum Lift Height | 119 in |
| Lowered Mast Height | 82 in |
| Extended Mast Height | 135 in |
| Fork Length | 45 in |
| Single Fork Width | 4 in |
| Adjustable Fork Width | 8.3–33.5 in |
| Lowered Fork Height | 2.35 in |
| Fixed Leg Length | 36.5 in |
| Adjustable Straddle Leg Width | 45.5–59.1 in |
| Overall Length | 70 in |
| Maximum Overall Width | 61 in |
| Wheelbase | 45.4 in |
| Turning Radius | 52.6 in |
| Minimum Ground Clearance | 0.95 in |
| Service Weight | 1,450 lbs |
| Wheel Material | Polyurethane |
| Battery Rating | 24V / 50Ah |
| Internal Charger | 24V / 15A |
| Drive Motor Power | 0.75 kW |
| Lift Motor Power | 2.2 kW |
| Travel Speed, Loaded | 4.0 km/h |
| Travel Speed, Unloaded | 4.2 km/h |
| Lift Speed, Loaded | 92 mm/s |
| Lift Speed, Unloaded | 136 mm/s |
| Lowering Speed, Loaded | 112 mm/s |
| Lowering Speed, Unloaded | 98 mm/s |
| Service Brake | Electromagnetic |
| Steering Type | Mechanical |
| Controller | Curtis® |
| Side Shift | Yes |
| Fork Adjustment | Yes |
| Straddle Leg Adjustment | Yes |
| Construction | Steel with Robotic Welding |
| Warranty | 3-Year Limited Warranty |
