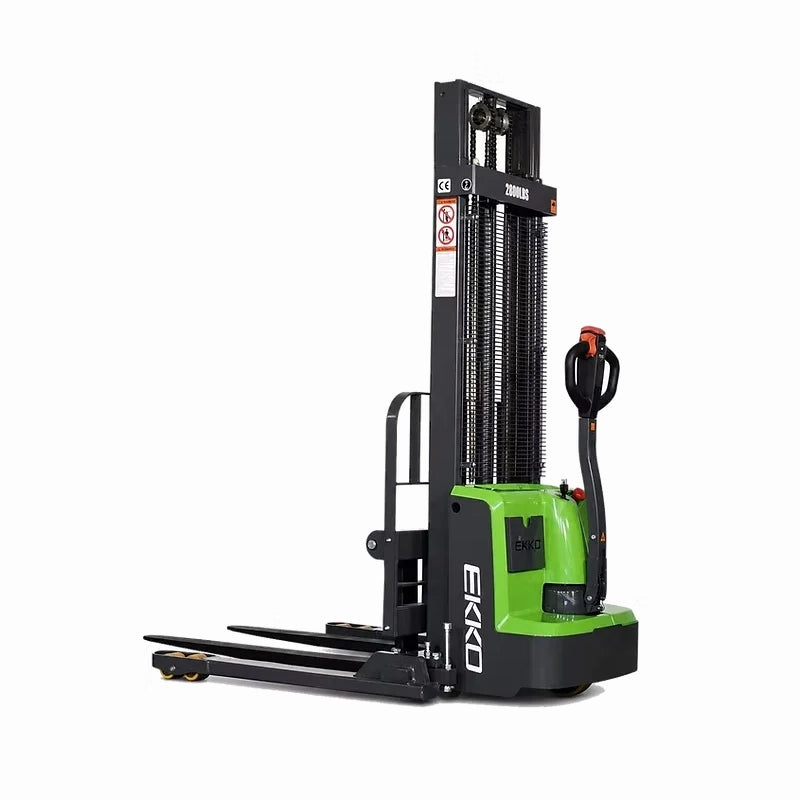

EKKO EB13E-138Li three-quarter view with forks lowered.

EKKO EB13E-138Li 2,800 lb Lithium Electric Straddle Stacker, 138-Inch Lift

by EKKO
$6,198.00

Notify me when back in stock

Description

EKKO EB13E-138Li 2,800 lb Lithium Electric Straddle Stacker with 138-Inch Lift Height

Flexible lithium-powered pallet lifting for warehouses, loading docks, and industrial storage facilities.

The EKKO EB13E-138Li Lithium Electric Straddle Stacker is a fully powered walk-behind pallet stacker designed to simplify warehouse material handling and elevated pallet storage. Featuring a 2,800 lb rated load capacity, a 138-inch maximum lift height, and adjustable forks and straddle legs, this versatile electric stacker combines lifting capability with a compact warehouse-oriented design.

Powered by a 24V/50Ah lithium battery, the EB13E-138Li provides electric drive and lifting functions for transporting and positioning palletized materials. Its ergonomic walkie controls, Curtis® instrument controller, and polyurethane wheels make it a practical option for operations requiring maneuverability on suitable warehouse surfaces.

Constructed using quality steel components and robotic welding, the stacker is built for industrial material handling environments, including distribution centers, stockrooms, manufacturing facilities, and warehouses.

Key Features & Benefits

  • 2,800 lb Load Capacity: Supports palletized goods and industrial inventory at a 24-inch rated load center.

  • 138-Inch Maximum Lift Height: Provides elevated reach for pallet stacking, inventory storage, and material positioning.

  • 24V/50Ah Lithium Battery: Rechargeable battery supplies power for electric travel and lifting operations.

  • Fully Powered Electric Operation: Combines electric driving with powered hydraulic lifting to reduce manual handling effort.

  • Adjustable Straddle Legs: Adjustable support-leg width provides flexibility for compatible pallet dimensions and load configurations.

  • Adjustable Fork Width: Fork spacing from 8.3 to 33.5 inches accommodates a range of compatible pallet sizes.

  • 45-Inch Fork Length: Supports suitable palletized loads during material transport and stacking.

  • Curtis® Instrument Controller: Provides electronic control functionality for the electric drive system.

  • 2.2 kW Lift Motor: Delivers powered hydraulic lifting for material positioning and storage applications.

  • 0.75 kW Drive Motor: Provides electric travel performance for warehouse operations.

  • Polyurethane Wheels: Designed for smooth, firm industrial and warehouse flooring.

  • 52.6-Inch Turning Radius: Supports maneuverability in suitable warehouse working areas.

  • Ergonomic Walkie Control Handle: Provides convenient access to essential travel and lift functions.

  • Robotic-Welded Steel Construction: Supports equipment durability during routine industrial use.

  • 24V/15A Internal Charger: Provides a manufacturer-listed charging solution for the lithium battery system.

  • 3-Year Limited Warranty: Manufacturer-listed limited warranty, subject to applicable terms and conditions.

Designed for Elevated Pallet Storage

The EKKO EB13E-138Li offers a practical solution for facilities that require pallet handling at multiple storage heights.

Its 138-inch lifting capability allows operators to position compatible palletized materials at elevated storage locations within the equipment's rated operating limits.

The adjustable straddle legs provide additional flexibility when working with different pallet sizes, while the adjustable forks allow the operator to match fork spacing to compatible loads.

Efficient Lithium Electric Performance

The EB13E-138Li is equipped with a rechargeable lithium battery that powers the electric drive and lifting systems.

Unlike LPG or diesel-powered material handling equipment, this electric stacker produces no tailpipe exhaust during operation.

The combination of its 24V battery, electric drive motor, and powered lifting system makes it useful for warehouses and stockrooms where compact electric equipment is preferred.

The integrated charger provides a convenient solution for maintaining battery availability during regular operations.

Adjustable Forks and Straddle Legs

One of the EB13E-138Li's main advantages is its adaptable pallet-handling design.

With adjustable forks and straddle legs, the stacker can accommodate various compatible load widths and pallet configurations.

The fork width adjusts from 8.3 to 33.5 inches, while the straddle-leg width ranges from approximately 45.5 to 59.1 inches according to the manufacturer's technical specifications.

This flexibility makes the stacker useful for businesses managing multiple pallet sizes within their warehouse operations.

Compact Design for Warehouse Maneuverability

The EB13E-138Li features a 70-inch overall length, a maximum overall width of 61 inches, and a 52.6-inch turning radius.

Its walk-behind configuration provides an alternative to larger sit-down forklifts for compatible material handling operations in more restricted workspaces.

Polyurethane wheels and ergonomic handle controls help support smooth-floor warehouse applications.

Common Applications

  • Warehouse pallet stacking and retrieval

  • Distribution center material handling

  • Manufacturing and production facilities

  • Industrial inventory storage

  • Stockrooms and storage facilities

  • Loading dock operations

  • Pallet transport and positioning

  • Logistics and fulfillment warehouses

  • Elevated pallet storage applications

Why Choose the EKKO EB13E-138Li?

The EKKO EB13E-138Li combines 2,800 lb lifting capacity with a taller 138-inch lift and lithium battery-powered operation.

Its adjustable forks, adjustable straddle legs, compact turning radius, and ergonomic controls make it suitable for facilities seeking a versatile electric pallet stacker.

For operations requiring elevated storage access without a conventional counterbalance forklift, the EB13E-138Li provides a compact walkie stacker solution with practical warehouse-focused features.

Choose the EKKO EB13E-138Li for dependable lithium-powered pallet handling, adjustable straddle positioning, and efficient 138-inch vertical lifting capability.



Technical Product Specifications

Specification

Value
Brand EKKO
Model EB13E-138Li
Manufacturer SKU EB13E-138LI
Equipment Type Electric Straddle Stacker
Operation Type Walk-Behind / Walkie
Drive / Lift Operation Fully Electric
Battery Technology Lithium
Rated Load Capacity 2,800 lbs
Load Center Distance 24 in
Maximum Lift Height 138 in
Lowered Mast Height 92 in
Extended Mast Height 159.4 in
Fork Length 45 in
Single Fork Width 4 in
Adjustable Fork Width 8.3–33.5 in
Lowered Fork Height 2.35 in
Fixed Straddle Leg Length 36.5 in
Adjustable Straddle Leg Width 45.5–59.1 in
Overall Length 70 in
Maximum Overall Width 61 in
Turning Radius 52.6 in
Service Weight 1,365 lbs
Wheel Material Polyurethane
Battery Rating 24V / 50Ah Lithium
Internal Charger 24V / 15A
Drive Motor Power 0.75 kW
Lifting Motor Power 2.2 kW
Travel Speed, Loaded 4.0 km/h
Travel Speed, Unloaded 4.2 km/h
Lift Speed, Loaded 92 mm/s
Lift Speed, Unloaded 136 mm/s
Lowering Speed, Loaded 112 mm/s
Lowering Speed, Unloaded 98 mm/s
Controller Curtis® Instrument Controller
Fork Adjustment Yes
Straddle Leg Adjustment Yes
Side Shift Not listed as standard
Construction Steel with Robotic Welding
Warranty 3-Year Limited Warranty

Manuals

EKKO EB13E Series Instruction Manual (PDF)
