Description

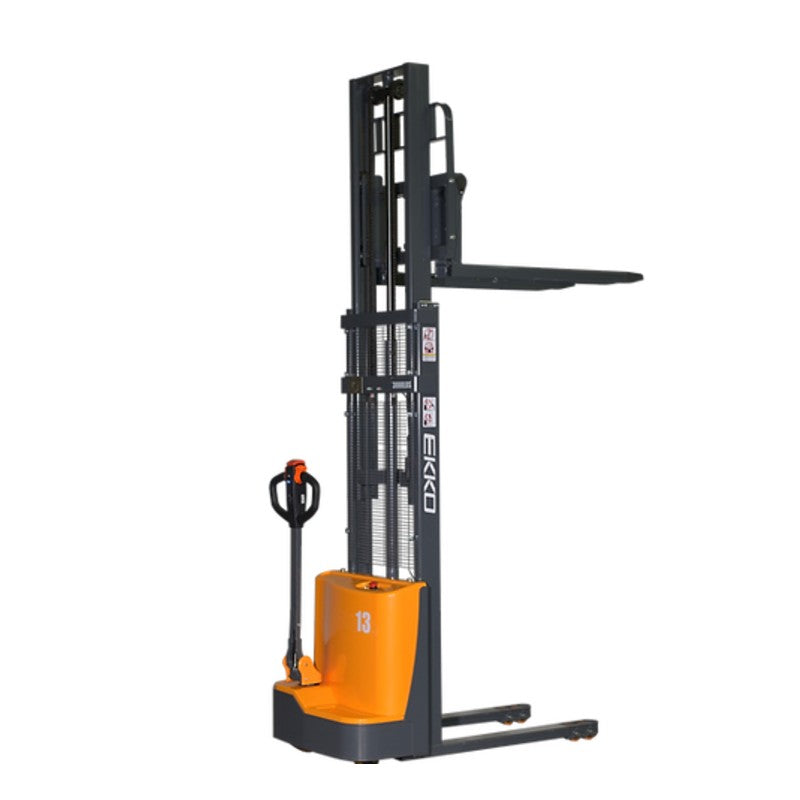

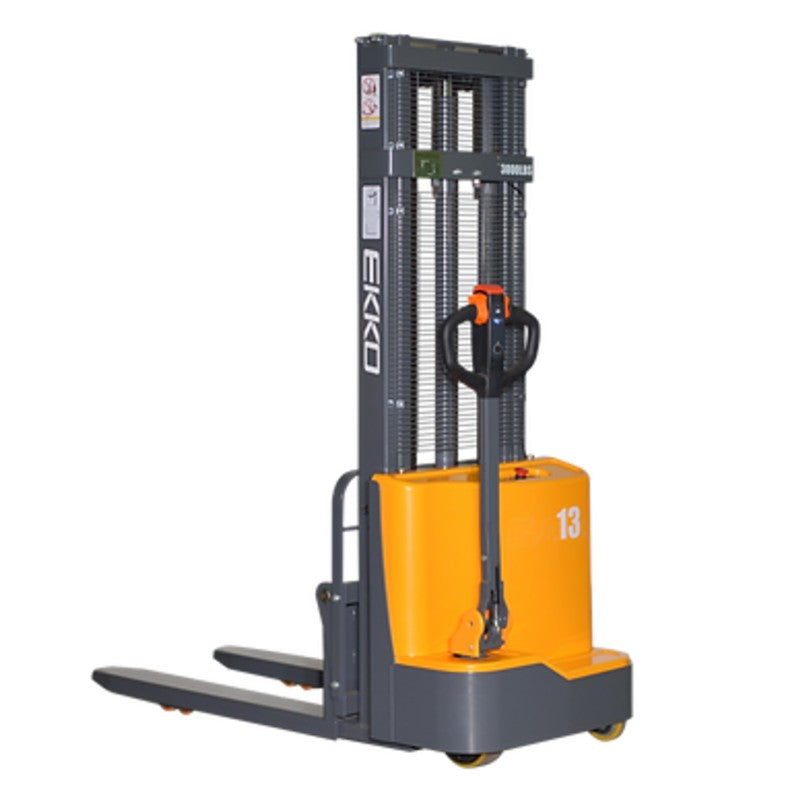

EKKO EB13CD Full Powered Fork Over Stacker – 2800 lb Capacity, 118" Height
The EKKO EB13CD Electric Fork Over Stacker combines the versatility of a forklift, reach truck, and walkie stacker for a range of material handling applications. With a 2800 lb capacity and 118" height, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Made from high-quality steel and components with durable drives, it is designed to withstand terrain, usage, impact, and directional changes for supported applications.
- Load Capacity 2800 lb
- Raised Height 118”
- Fixed Legs and Forks
- Fork Length 45.28"
- 24V Lift Motor
- Battery 2*12V/85Ah
- Polyurethane Wheels

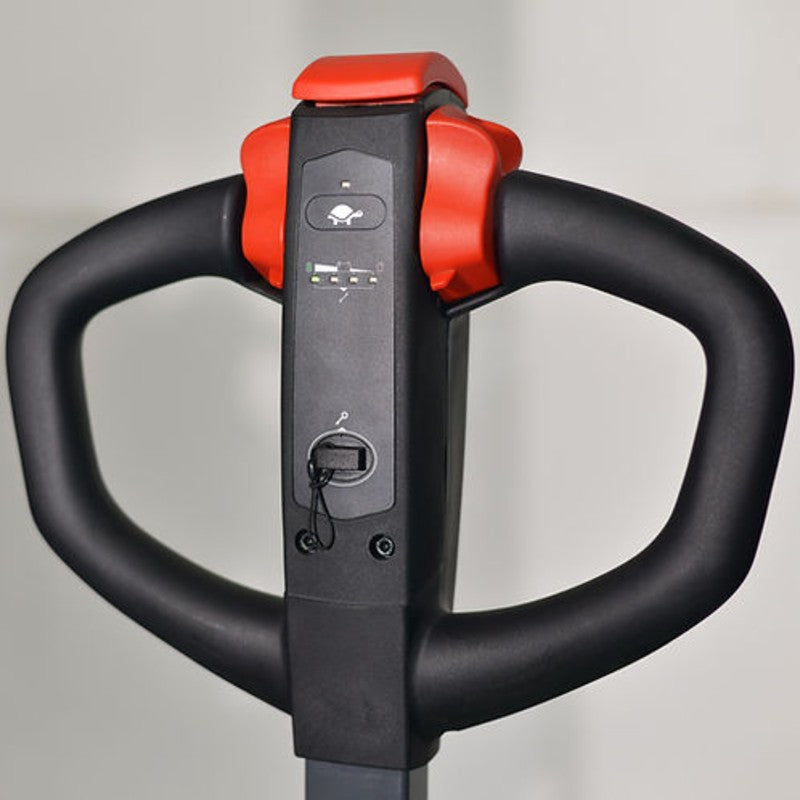

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
Product Info
|
Model |
 |
EB13CD |
|
Load capacity |
(lbs) |
2800 |
|
The max. lifting height |
(in) |
118” |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.28 |
|
Single fork width |
(in) |
5.59 |
|
Overall fork width (Inner/outer) |
(in) |
11.8 / 26.8 |
|
Lowered fork height |
(in) |
3.54 |
|
Turning radius |
(in) |
55.1 |
|
Overall length |
(in) |
71.7 |
|
Extended mast height |
(in) |
147.6 |
|
Lowered mast height |
(in) |
82.3 |
|
Battery voltage (dimensions) |
(in) |
2Ă—12V/85AH |
|
Internal Charger |
V/A |
24V/15A |
|
Lifting Motor |
V/Kw |
2.2kw. |
|
Driving Motor |
 |
0.75kw. |
|
Service Weight |
 (lbs) |
992 |
