Description

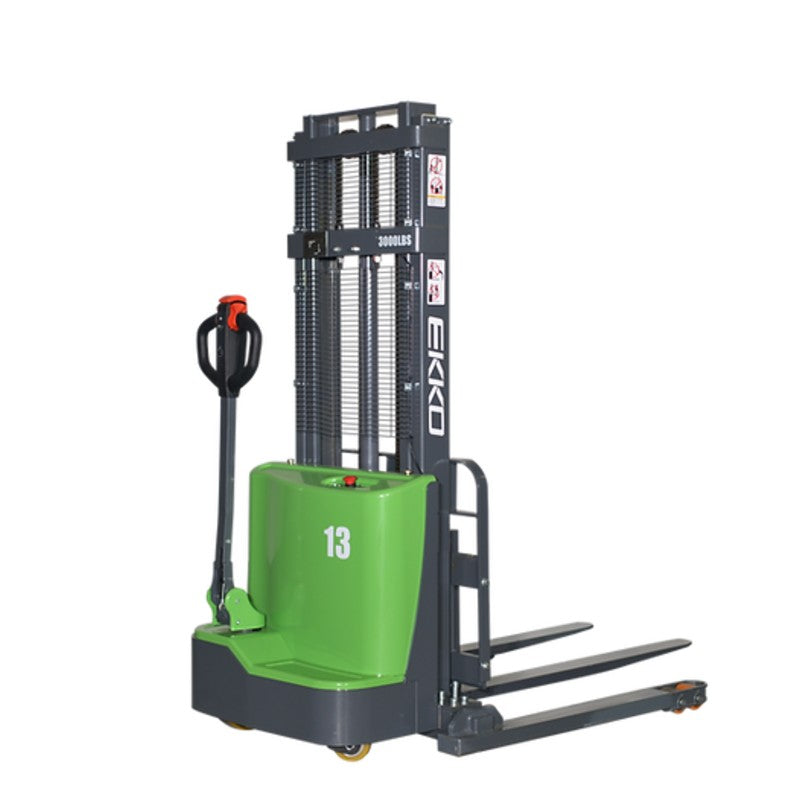

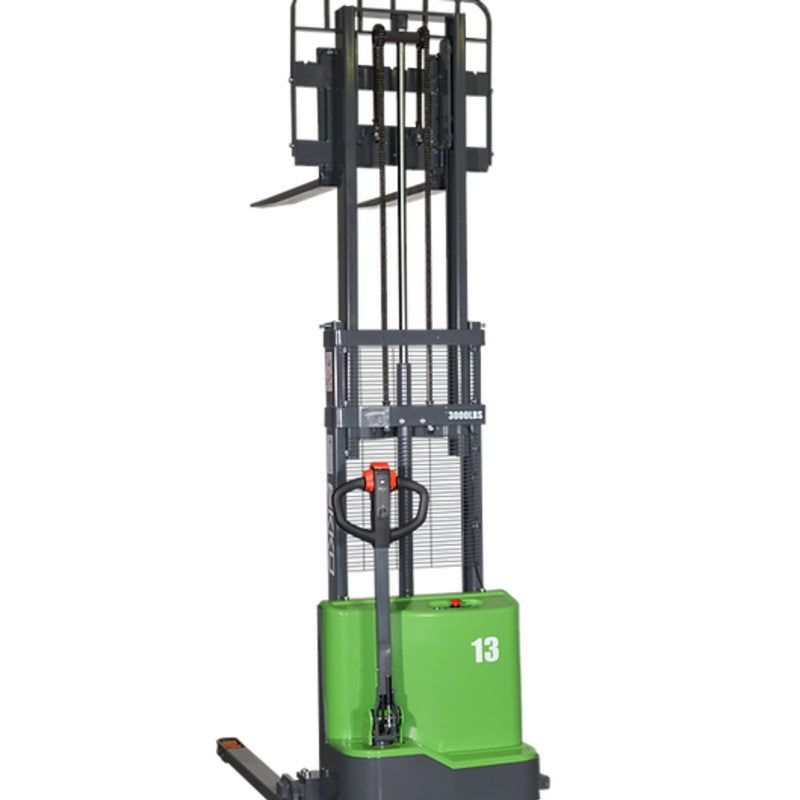

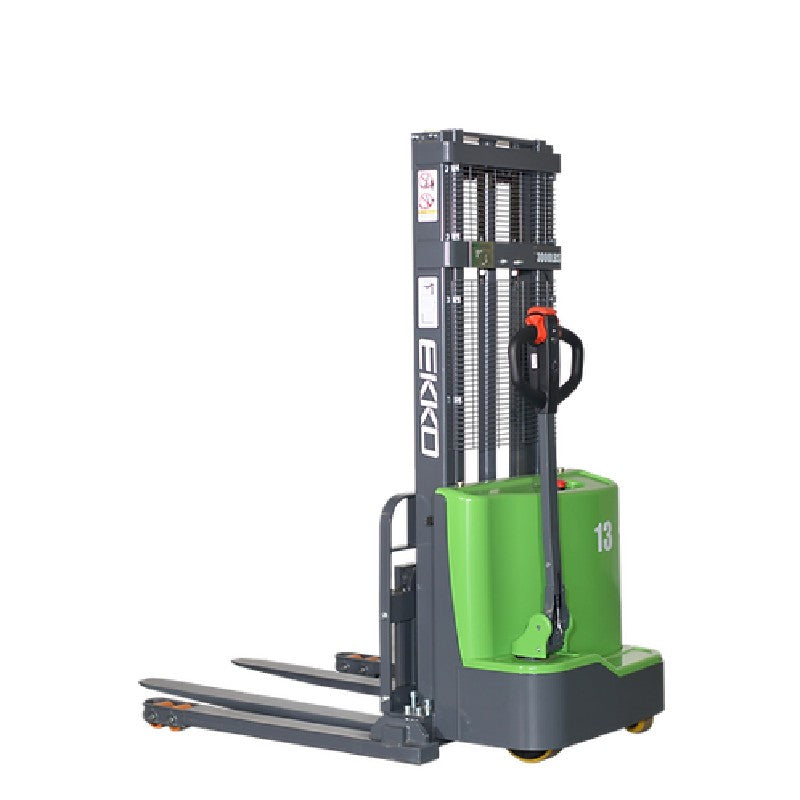

EKKO EB13C-98Li Lithium Straddle Stacker 2800 lb Capacity, 98" Height
The EKKO EB13C-98Li Lithium Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker in one durable design. With a 2,800 lb capacity and 98" lift height, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. Made from high-quality steel and components with durable quality drives, it is designed to withstand terrain, usage, impact, and directional changes for a range of material handling applications.
- Load Capacity 2800 lb
- Raised Height 98”
- Adjustable Forks 8.6-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/50Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
Product Info
|
Model |
|
EB13C-98LI |
|
Load capacity |
(lbs) |
2800 |
|
The max. lifting height |
(in) |
98” |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Fork Adjustment Width |
(in) |
8.6-32.1 |
|
Lowered fork height |
(in) |
2.56 |
|
Adjustable legs |
(in) |
35.4-51.2 |
|
Turning radius |
(in) |
56.1 |
|
Overall length |
(in) |
73.4 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
127.6 |
|
Lowered mast height |
(in) |
75.2 |
|
Battery voltage |
(V/Ah) |
24V/50Ah Lithium |
|
Internal Charger |
V/A |
24V/20A |
|
Lifting Motor |
Kw |
2.2 kw |
|
Driving Motor |
|
0.75 kw |
|
Service Weight |
(lbs) |
1360 |
