Description

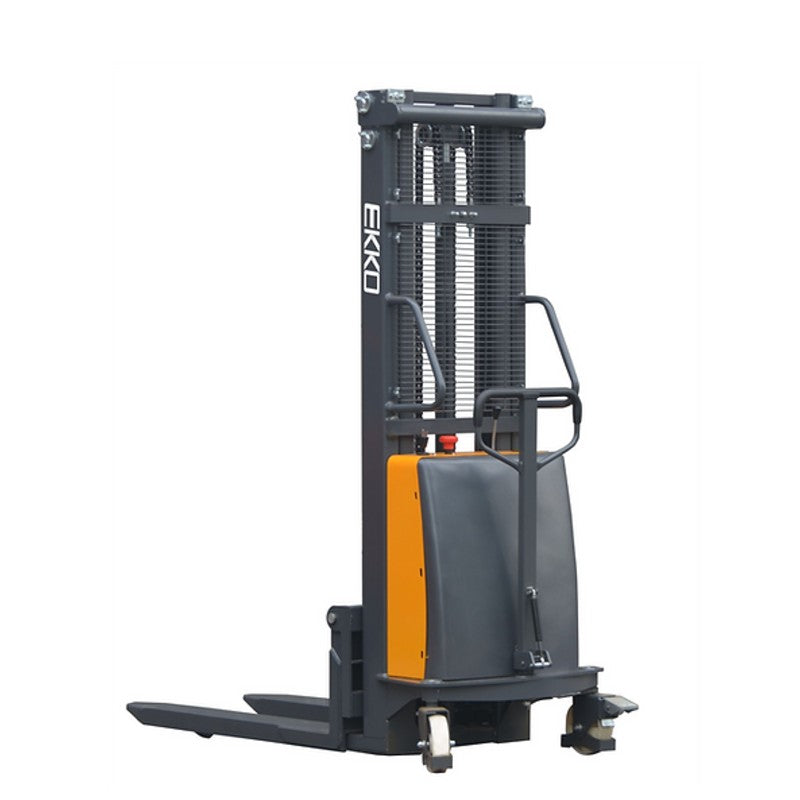

EKKO EA15E Semi-Electric Fork-Over Stacker 3300lbs. Cap. 138" Height
The EKKO EA15E Semi-Electric Fork-Over Stacker combines the versatility of a forklift with the functionality of a pallet stacker, providing a 3300lbs. capacity and 138" lift height for material handling applications. Built with high-quality steel and durable components, it is designed for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing, with durable drives suited for demanding usage, impacts, terrain, and directional changes.
- Load Capacity 3300lbs.Â
- Raised Height 138" (11.5ft)
- Fork Length 45.3"
- Power Lifting
- Manual Drive
- Adjustable Forks
- Internal Charger 12V/20A Included
- Battery 12V 120Ah Included
- Ergonomic HandleÂ
- Steel Construction
- Robotic Welding
- 3 Years Limited Warranty
Product Info
|
Model |
 |
EA15E |
|
Load Capacity |
 (lb) |
3300 |
|
Lifting height Max. |
(in) |
138 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
5.9 |
|
Overall fork width |
(in) |
24.5 |
|
Lowered fork height |
(in) |
2.4 |
|
Fixed leg length |
(in) |
45.3 |
|
Fixed leg width, single |
(in) |
5.9 |
|
Width between legs |
(in) |
12.75 |
|
Turning radius |
(in) |
53.2 |
|
Overall length |
(in) |
73 |
|
Overall width max |
(in) |
59 |
|
Extended mast height |
(in) |
140.5 |
|
Lowered mast height |
(in) |
81.8 |
|
Battery Voltage |
(V/Ah) |
12V/120Ah |
|
Charger |
(V/A)Â |
12V/20A |
|
Lift Motor |
 (V/W) |
DC 12V/1500W |
|
Service Weight |
 (lb) |
910 |
