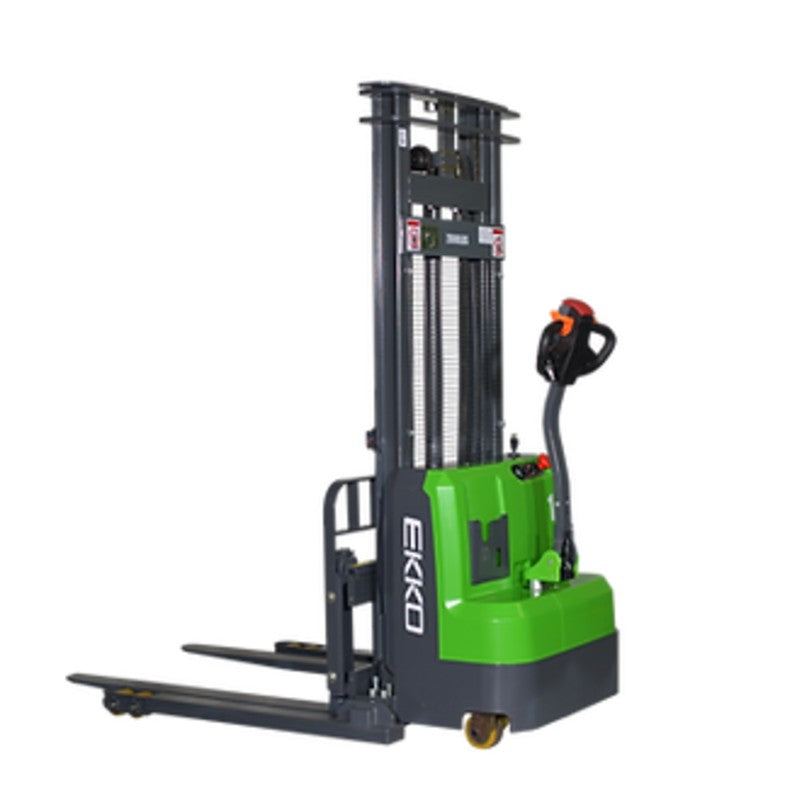

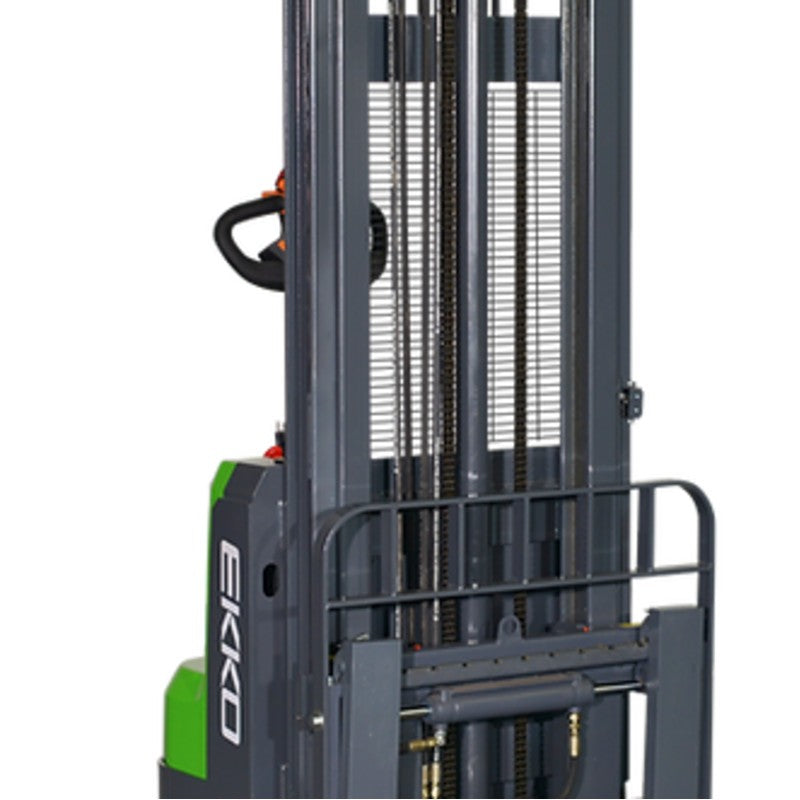

EKKO EB14CS-177Li Lithium Straddle Stacker, 3,000 lb Capacity, 177" Lift, Side Shift
by EKKO
$16,999.00
The EKKO EB14CS-177Li Electric Straddle Stacker combines the versatility of a forklift, reach truck, and walkie stacker in a compact design. With a 3,000 lb capacity, 177" lift height, and Side-Shift, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouses. Built from high-quality steel and components, it features a dual damping drive system designed to enhance handling performance, operator comfort, and overall efficiency across varied terrain and demanding applications.
|
Model |
|
EB14CS-177LI |
|
Load capacity |
(lbs) |
3000 |
|
The max. lifting height |
(in) |
177 |
|
Load center distance |
(in) |
24 |
|
Fork length |
(in) |
45.3 |
|
Single fork width |
(in) |
4 |
|
Fork Adjustment Width |
(in) |
8.7-32.1 |
|
Lowered fork height |
(in) |
2.6 |
|
Adjustable legs |
(in) |
35.4-51.2 |
|
Turning radius |
(in) |
60.8 |
|
Overall length |
(in) |
73.7 |
|
Max Overall width |
(in) |
61 |
|
Extended mast height |
(in) |
--- |
|
Lowered mast height |
(in) |
--- |
|
Lithium Battery voltage |
(V/Ah) |
24/100 |
|
Internal Charger |
(V/A) |
24/20 |
|
Lifting Motor |
(Kw) |
2.2 kw |
|
Driving Motor |
|
DC Drive Motor |
|
|
|
|
Buying warehouse equipment is a serious investment. Rhino Warehouse Supply makes the process easier with responsive service, straightforward product guidance, and personalized support from your first question through delivery.
We’re committed to helping you find the right equipment for your operation—without the confusion or guesswork.
Shipping rates are calculated based on the product and delivery destination and will be shown at checkout when available. Many of our larger warehouse and material handling products ship via freight.
Once your order is placed, our team will coordinate shipment with the supplier and carrier to help ensure a smooth delivery. If any additional information is needed before shipment, we’ll contact you directly.
