Description

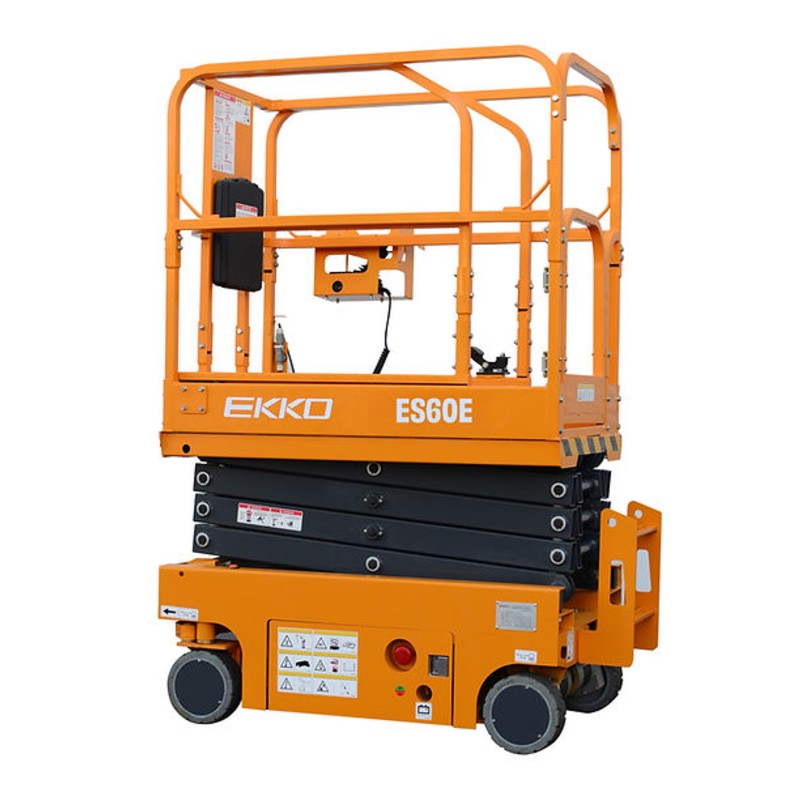

EKKO ES60E Aerial Work Platform – 19' Lift Height
The EKKO ES60E Scissor Aerial Work Platform is a compact four-wheel platform designed for lifting, transporting loads, and moving products with a 500-lb capacity and a 19' (228'') lift height. Equipped with a Curtis controller, it provides practical control for material handling and elevated work applications. The ES60E complies with GB25849 and EN280 standards and is suitable for applications requiring a compact aerial work platform for lifting and moving products.
- Load Capacity 500 lb
- Raised Height 19' (228")
- Lowered Height 86''
- Size: Length 65" x Width 30"
- Steel construction
- 3 Years Limited Warranty
Product Info

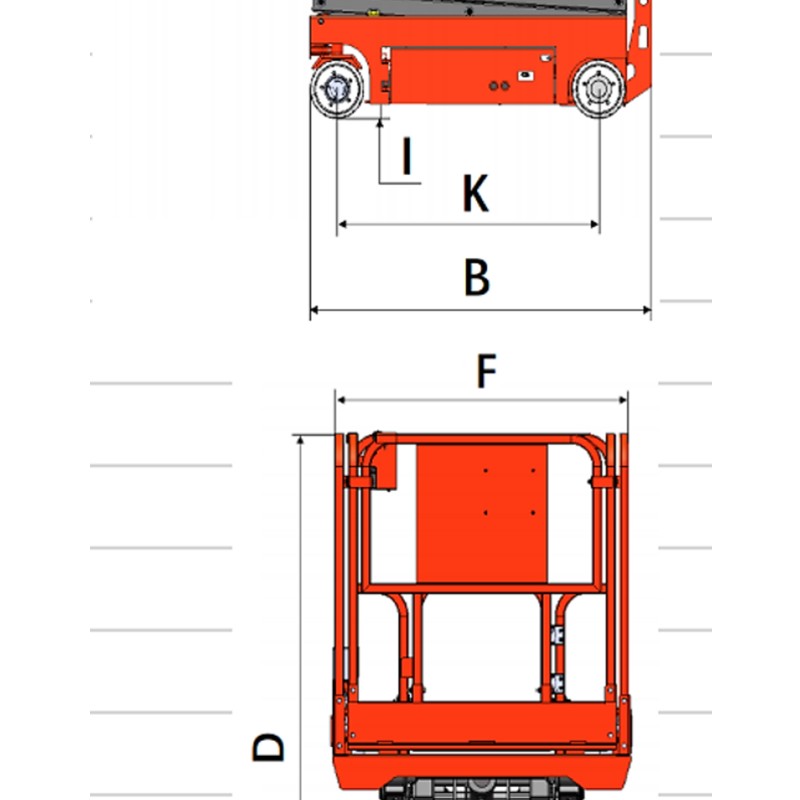

| ES60E | ||
| product dimensions | ||
| A1 Max working height | Inch | 25.5' (307'') |
| A2 Max platform height | Inch | 19' (228'') |
| B Length | Inch | 72.44 |
| C Width | Inch | 29.92 |
| D Overall height (guardrail not folded) | Inch | 85.75 |
| Overall height (folding guardrail) | Inch | 65 |
| Platform size (length EX width FX height G) | Inch | 64.96x29.92 |
| G Guardrail height | Inch | 43.31 |
| H Platform extension size | Inch | 35.43 |
| I Ground clearance (closed state) | Inch | 2.36 |
| J Ground clearance (lifting state) | Inch | 0.59 |
| K Wheelbase | Inch | 1.36 |
| product performance | ||
| Maximum number of workers (indoor/outdoor) | 2 / – | |
| load rating | LBS | 500 |
| Extended platform load rating | LBS | 264 |
| Driving speed (folding state) | km/h | 0~4 |
| Driving speed (lifting condition) | km/h | 0~0.8 |
| Minimum Turning radius (inside) | Inch | 0 |
| Minimum turning radius (outside) | Inch | 61 |
| Rise/fall time | s | 18/28 |
| Maximum allowable tilting Angle (front/left/right) | ° | 3°/1.5° |
| Maximum allowable wind speed (indoor/outdoor) | m/s | 0/0 |
| Maximum allowable lateral force (indoor/outdoor) | N | 400/0 |
| Gradeability | % | 30 |
| control | proportional control | |
| actuator | Double front wheels | |
| braking | Double rear wheels | |
| Tyre specification/type | Inch | 12.71*3.93 |
| Product power | ||
| Lift/drive motor | kw | 2.2/0.7x2 |
| Battery voltage/capacity | V/Ah | 6x4/225 |
| Charger input voltage | VAC | 100-240 |
| Charger output current | A | 36 |
| control voltage | VDC | 24 |
| Hydraulic tank capacity | L | 8 |
| total weight | lbs | 3256 |
