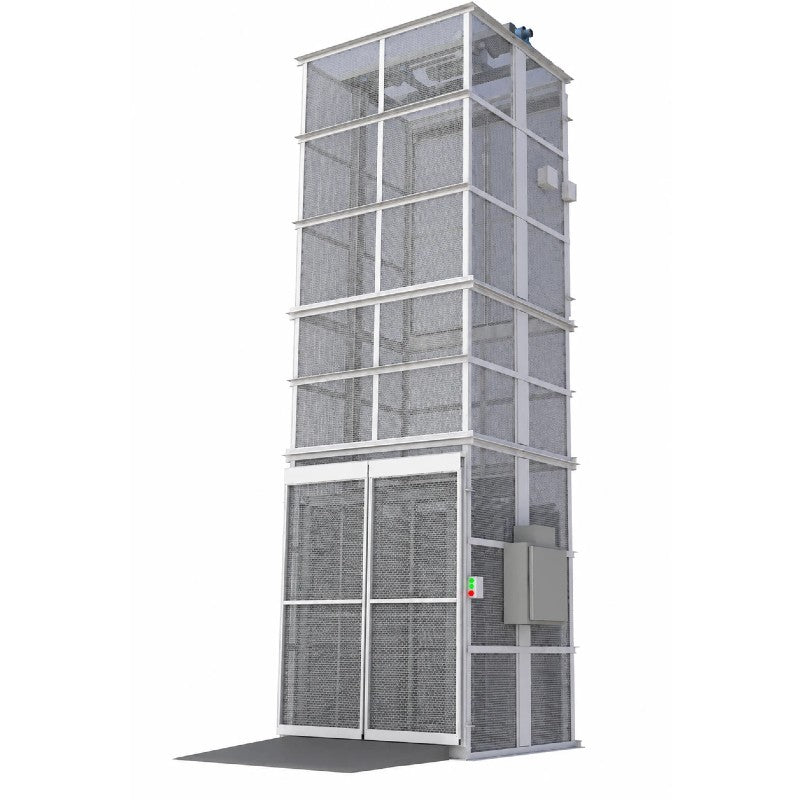

PMB Series Bolt-Together Pallet Lift, 2,500 lb Capacity, 72" x 72" Platform

PMB Series Modular Pallet Lift for Flexible Vertical Transport

The PMB Series Bolt-Together Pallet Lift is a modular vertical reciprocating conveyor designed to move pallets, carts, and packaged materials between floors or mezzanine levels. Its sectional bolt-together construction is designed to simplify transportation into a building and on-site assembly, making it useful for facilities where access, renovation conditions, or installation logistics can make positioning a fully welded structure difficult.

This starting configuration uses manufacturer model PMB-25-72x72x72-2-C43, featuring a 2,500 lb load capacity, 72" x 72" platform, and 8–10 ft travel height. Factory-prepared modular sections are coordinated with the selected loading arrangement, landing gates, and enclosures.

Key Features:

• Bolt-Together Modular Structure: Sectional construction supports easier transport, staging, and assembly in existing facilities.
• 2,500 lb Starting Capacity: Designed to move palletized products, carts, and industrial materials within the specified capacity.
• 72 x 72 Inch Platform: Offers useful loading space for standard pallets and larger cart-based loads.
• Installation-Friendly Design: Compact structural sections and factory preparation help streamline field assembly and wiring.
• Configurable Landing Access: Gate and opening directions can be coordinated with floor plans and material-flow requirements.
• Manufacturer Warranty: Motor: 5 years; manufactured parts: 2 years; purchased parts: 2 years.

Ideal Applications

The PMB Series is ideal for warehouses, manufacturing facilities, distribution centers, and existing buildings where pallet handling and flexible installation are required. Its modular design helps accommodate challenging installation paths while supporting efficient vertical material handling.

Specifications
