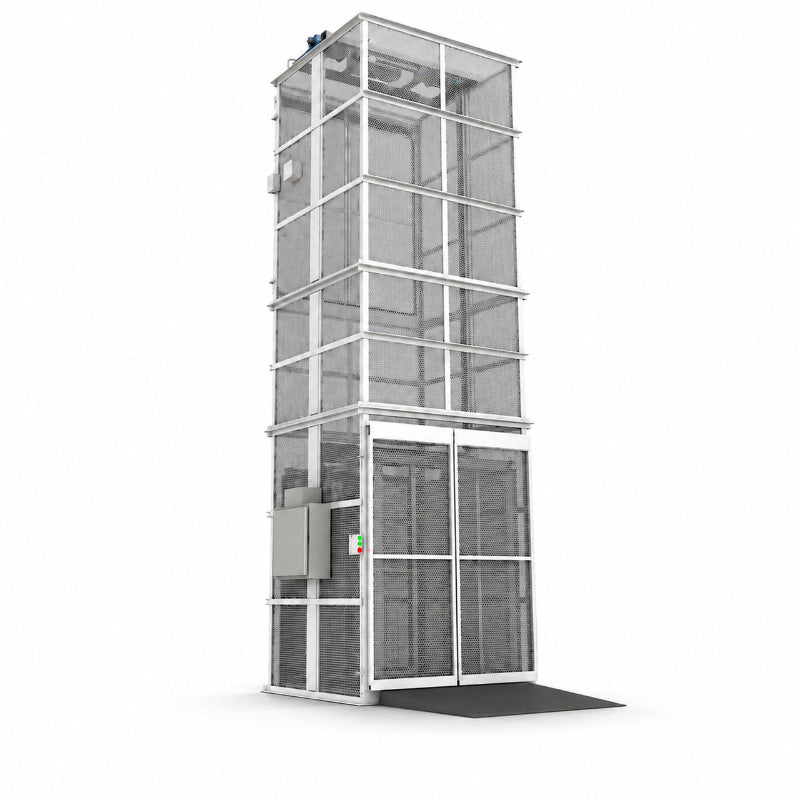

PM Series Vertical Reciprocating Conveyor, 5,000 lb Capacity, 72" x 72" Platform, 17' Vertical Travel

PM Series Vertical Conveyor for Heavy-Duty Pallet Transport

The PM Series Vertical Reciprocating Conveyor provides a dedicated solution for moving pallets, carts, and heavy materials between floors and mezzanines. Designed to raise and lower loads up to 5,000 lbs, this guided vertical conveyor features a 72" x 72" platform and provides 17 feet of vertical travel.

By moving materials vertically between levels, the PM Series helps reduce reliance on ramps or forklifts for vertical transport. It is designed for material-handling applications where efficient movement between floors or mezzanine levels is required.

Key Features:

• Configured Load Capacity: Designed to move palletized loads and materials weighing up to 5,000 pounds.
• Platform and Load Size: Includes a 72 x 72-inch platform with a 72-inch load height.
• Travel Height: Configured for exactly 17 feet of vertical travel.
• Warehouse and Mezzanine Use: Moves palletized products, carts, and materials between floors, mezzanines, and elevated work areas.
• Layout Flexibility: Available in C, Z, and pass-through loading arrangements to match the project workflow.
• Planning Dimensions: Approximate overall footprint is 88 x 85 inches, with 108 inches of required overhead clearance.
• Standard Lead Time: 6-8 weeks for the configured equipment.
• Project Quote Support: The displayed price covers the configured equipment only. Freight, installation, enclosures, gates, controls, and site-specific requirements are confirmed separately for the project.

Ideal Applications

The PM Series VRC Lift is ideal for warehouses, manufacturing facilities, distribution centers, and industrial environments requiring safe vertical material handling. It efficiently moves heavy loads between levels while optimizing space, improving workflow, and reducing manual handling.

Specifications
