Description

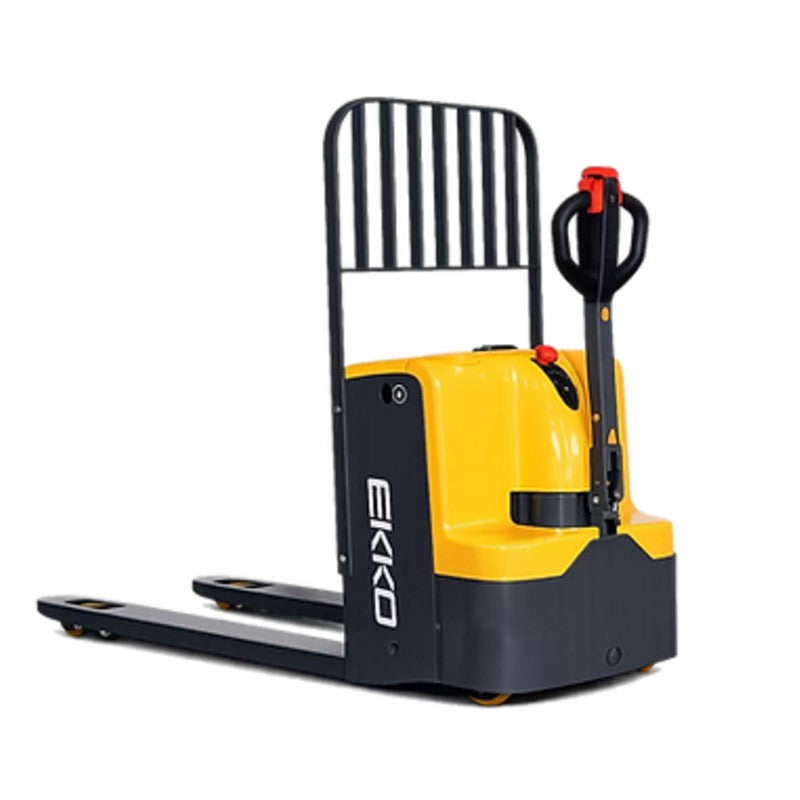

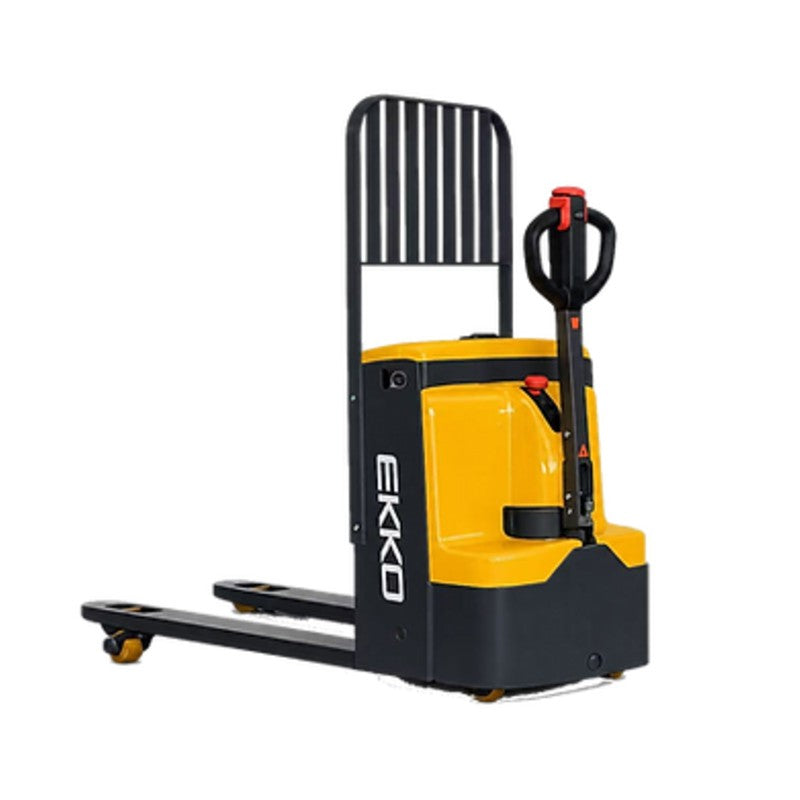

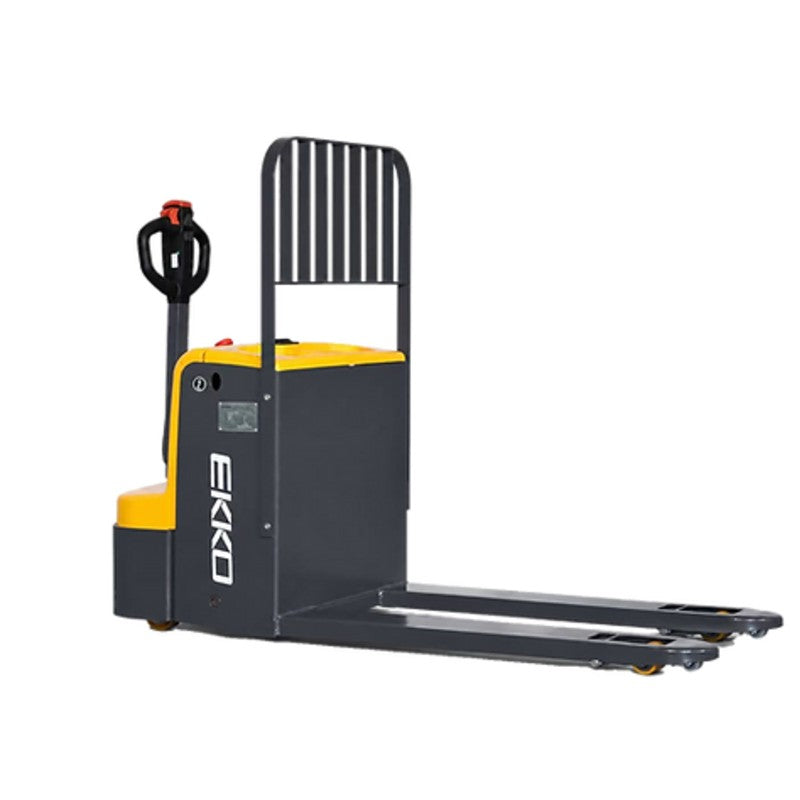

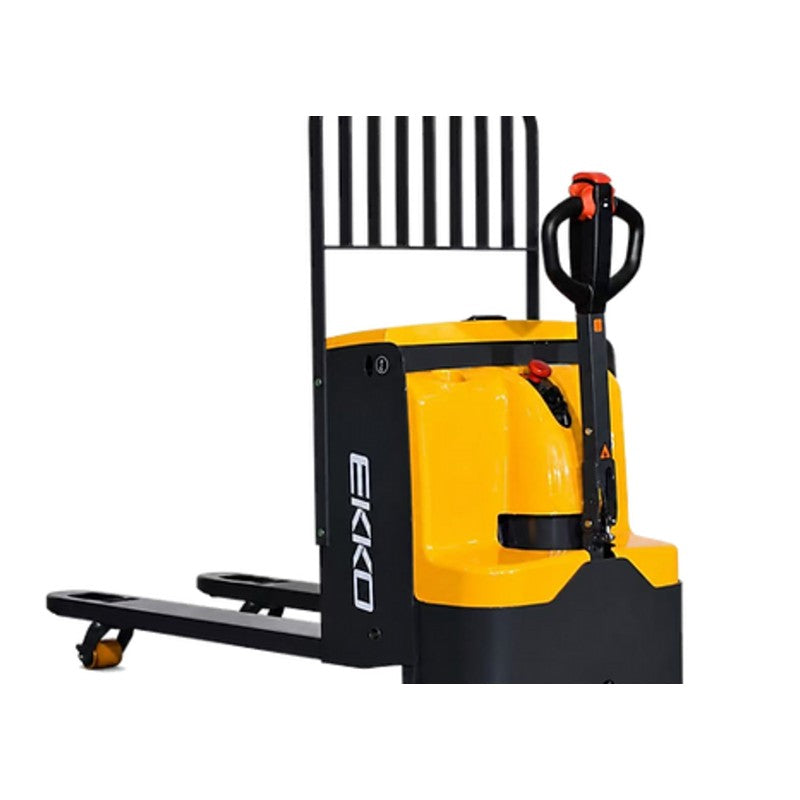

EKKO EP25E Walkie Pallet Jack 5500lbs. Capacity
The EKKO EP25E Electric Walkie Pallet Jack combines the versatility of a pallet jack with full power lifting and driving capabilities, providing a 5500lbs. capacity for material handling applications. Constructed with high-quality steel and components, it features durable drives designed to withstand various terrain, usage conditions, impacts, and directional changes, making it suitable for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing.
- Load Capacity 5500lbs.
- Fork Size 27x48
- Raised Height 7.9"
- Lowered Height 3.3"
- Curtis Controller
- Polyurethane Wheels
- Steel Entry Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
- 3 Years Limited Warranty
Product Info
|
Model |
|
EP25E |
|
Lift |
|
Electric |
|
Drive |
|
Electric |
|
Load capacity |
(lbs) |
5500 |
|
Load center |
(in) |
24 |
|
Wheel base |
(in) |
53 |
|
Lowered fork height |
(in) |
3.33 |
|
Lifting height |
(in) |
7.9 |
|
Overall length |
(in) |
71.2 |
|
Overall width |
(in) |
27.5 |
|
Fork size |
s/e/l (in) |
2/6/48 |
|
Outside distance of fork |
(in) |
27 |
|
Turning radius |
(in) |
60 |
|
Lifting speed, laden/unladen |
(in/s) |
0.8/1.1 |
|
Lowering speed, laden/unladen |
(in/s) |
1.5/1.5 |
|
Max gradient performance laden/unladen |
(%) |
8/15 |
|
Brake type |
|
electromagnetic |
|
Drive motor |
(kW) |
1.3 |
|
Lift motor |
(kW) |
0.8 |
|
Charger |
(V/A) |
24/30A |
|
Battery voltage/rated capacity |
(V/Ah) |
24/240 |
|
Type of the drive motor |
|
AC Motor speed control |
|
Noise level at operator sear |
(dB(A)) |
68 |
|
Service weight (with battery） |
(lbs) |
1445 |
