Description
EKKO EK16A-177 3-Wheel Electric Forklift – 3,500 lbs. Capacity, 177" Lift
The EKKO EK16A-177 3-Wheel Electric Forklift is a compact and reliable material-handling solution designed for small aisles, limited spaces, and demanding indoor applications. With a 3,500 lbs. lifting capacity and 177" lift height, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouses. Built with high-quality steel, durable components, and reliable drive systems, the EK16A-177 is designed to withstand everyday use, impacts, and frequent directional changes. Recommended for indoor use on flat surfaces, this forklift delivers excellent maneuverability and dependable performance where space is limited.
- Load Capacity 3500 lb
- Raised Height 177" (14.75ft)
- Free Lift 29.5"
- Side Shift
- Adjustable Forks 7.9-26"
- Fork Length 42.1"

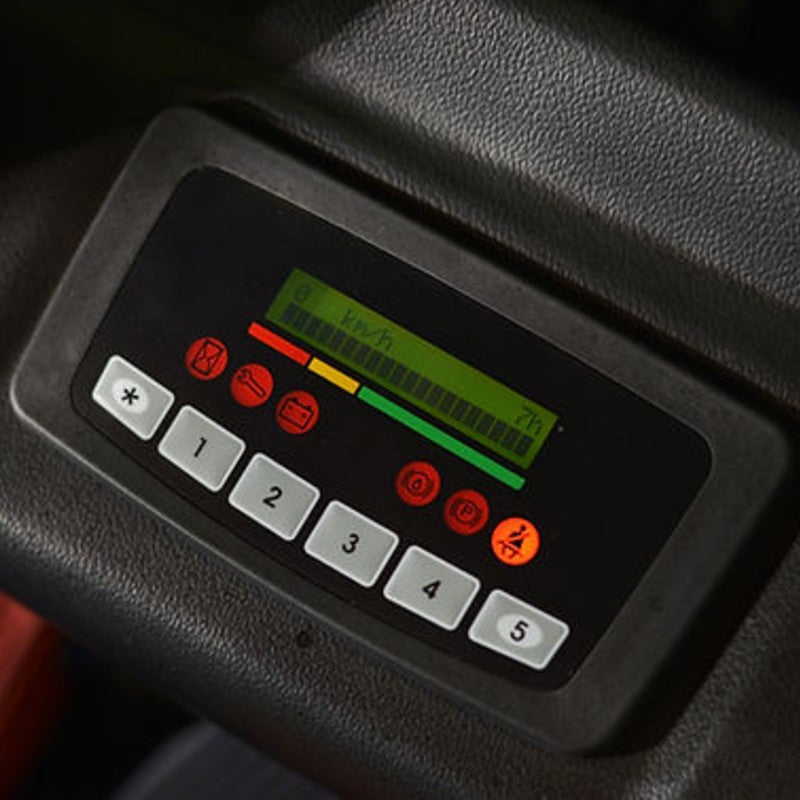

- Zapi Controller
- Tilt 2/4Â Degree
- 2.2kw AC Drive Motor
- 3.3 kw Lift Motor
- Cushion Tires
- HPS (Hydraulic Power Steering)Â
- Steel Construction
- Robotic Welding
- Charger Included
- 24V/320AH Battery IncludedÂ
Product Info
|
Model |
 |
EK16A-177 |
|
Lift |
 |
Electric |
|
Drive |
 |
Electric |
|
Load capacity |
(lb) |
3500 |
|
Load center distance |
(in) |
24 |
|
Wheel base |
(in) |
49.2 |
|
Lifting height |
(in) |
177 |
|
Free lifting height |
(in) |
34.5 |
|
Lowered mast height |
(in) |
81 |
|
Mast/Fork carriage tilt forward/backward |
( °) |
2/4 |
|
Side Shifting Forks |
 |
3-way valve |
|
Overall length |
(in) |
107.1 |
|
Overall width |
(in) |
42.1 |
|
Fork size, Thick/Width/Length |
(in) |
1.4/4/42.1 |
|
Fork adjust width |
(in) |
7.9-26 |
|
Turning radius |
(in) |
58.9 |
|
Max.gradient performance, laden/unladen |
(%) |
6/10 |
|
Lift speed,laden/unladen |
(in/s) |
4.71/10.2 |
|
Lowering speed, laden/unladen |
(in/s) |
11.8/15.7 |
|
Charger |
(V/A) |
24V/50A |
|
Driving Motor |
(KW) |
 AC 2.2 |
|
Lifting Motor |
(KW) |
3.3 |
|
Battery voltage |
(V/Ah) |
24V/320Ah |
|
Service Weight |
 (lb) |
5200 |
