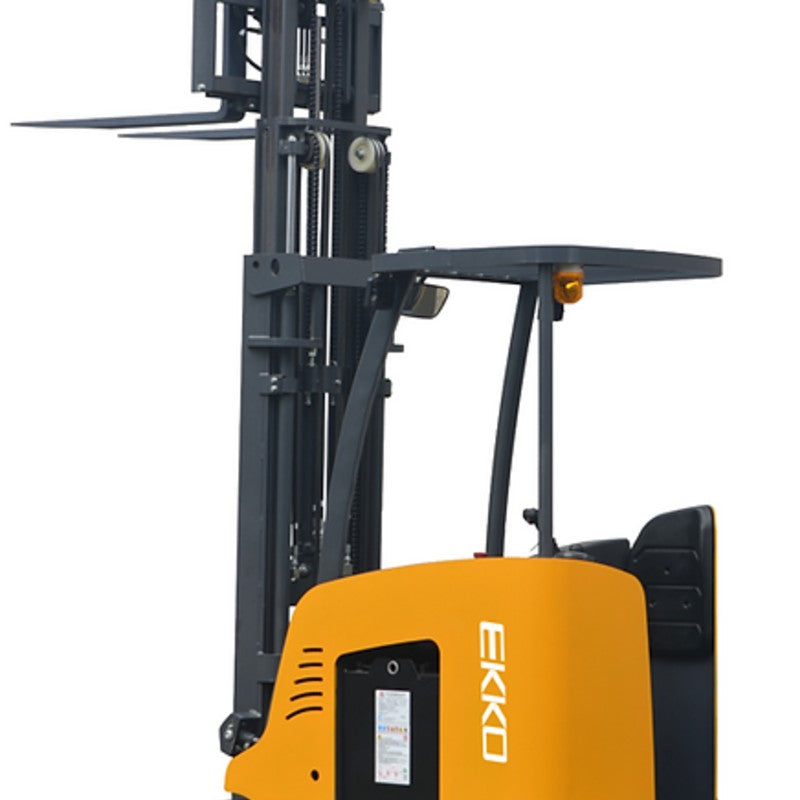

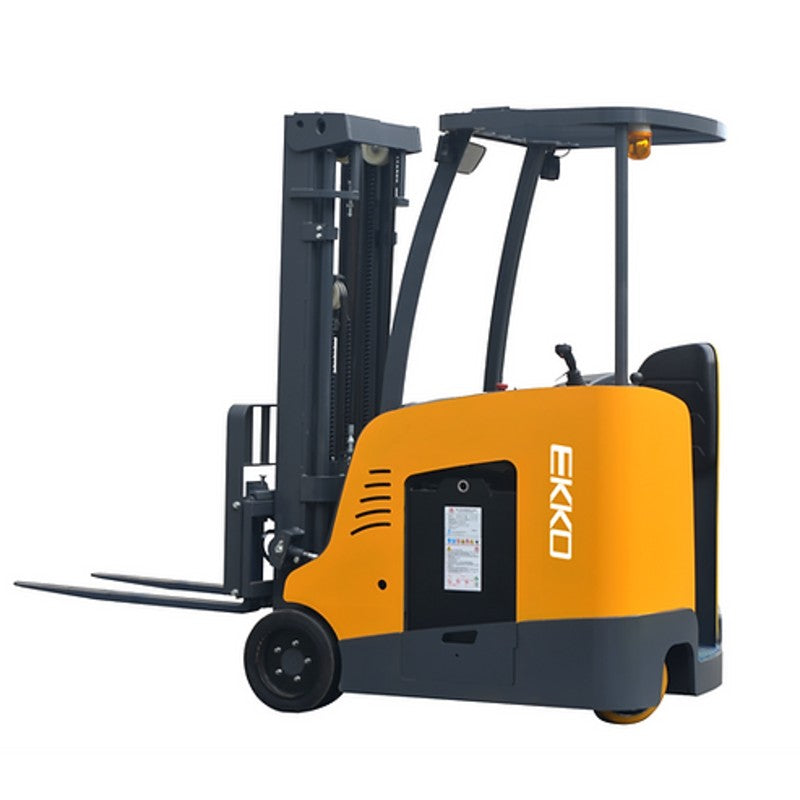

EKKO EK18RF Stand-up Rider Forklift – 4000 lb Capacity, 216" Lift Height, 48V
The EKKO EK18RF Stand-up Rider Forklift is designed for a range of material handling demands, with a 4000 lb capacity, 216" lift height, and 48V power system. Made from high-quality steel and components with durable drives, it is suited for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing. The forklift is designed to withstand terrain, usage, impact, and directional changes for dependable operation across material handling applications.
- Load Capacity 4000 lb
- Raised Height 216" (18ft)
- Side Shifting Forks
- Adjustable Forks 9.4-35.6"
- Fork Length 45.3“
- Hydraulic Steering
- Curtis Instrument Controller
- German AC Drive Motor
- Battery 48V/420Ah (included)
- Solid Cushion Load Tires
- Polyeurathane Drive Tires
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 480V 3-phase (standard)
-
Available Options (additional cost): 220V 3‑phase | 110V single‑phase
-
- 3 Year Limited Warranty
Product Info
|
Model |
|
EK18RF |
|
Power unit |
|
Electric |
|
Operation Type |
|
Rider |
|
Loading capacity |
Q (LBS) |
4000 |
|
Load center |
c (Inch) |
24 |
|
Axle centre to fork face |
x (Inch) |
11.5 |
|
Wheelbase |
y (Inch) |
48.8 |
|
Service weight with battery |
LBS |
7940 |
|
Wheels type |
|
Solid wheel |
|
Driving wheel size |
Φ×w(Inch) |
16×7-10.5（15.98*7.01*10.51） |
|
Bearing wheel size |
Φ×w(Inch) |
13.5×5.2 |
|
Wheels, number front/rear |
|
1×/2 |
|
Track width |
b10 (Inch) |
35.04 |
|
Mast/fork carriage tilt, fwd/bwd |
a/b (°) |
3/5 |
|
Lowered mast height |
h1 (Inch) |
91.77 |
|
Free lift height |
h2 (Inch) |
61.34 |
|
Lift height |
h3 (Inch) |
216.54 |
|
Extended mast height |
h4 (Inch) |
248.43 |
|
Height of overhead guard (cabin) |
h6 (Inch) |
90.08 |
|
Height of seat/stand-on platform |
h7 (Inch) |
9.06 |
|
Overall length |
l1 (Inch) |
117.78 |
|
Length to fork face |
l2 (Inch) |
72.52 |
|
Overall width |
b1/ b2 (mm) |
42.52/42.13 |
|
Fork dimensions |
s/e/l (Inch) |
1.58/4.72/45.28 |
|
Width of forks |
b3 (Inch) |
36.22 |
|
Ground clearance under mast |
m1 (Inch) |
2.95 |
|
Min.Ground clearance |
m2 (Inch) |
3.86 |
|
Aisle width requirement |
Ast (FT) |
10.5 |
|
Min.Turning radius |
Wa (Inch) |
58.5 |
|
Travel speed,laden/unladen |
(km/h) |
12/13 |
|
Lifting speed, with/without load |
(mm/s) |
250/400 |
|
Lowering speed, with/without |
(mm/s) |
240/258 |
|
Climbing ability, with/without |
(%) |
6/10 |
|
Service brake |
|
Hydraulic |
|
Drive motor, 60-minute rating |
(kW) |
6 |
|
Lift motor rating at S3 15% |
(kW) |
7.7 |
|
Battery according to DIN 43531/35/36 A,B,C,no |
|
no |
|
Battery voltage/rated capacity |
(V/Ah) |
48/420 |
|
Battery weight (± 5%) |
(LBS) |
1570 |
|
Power consumption VDI |
(mm) |
38*18.1*29.53 |
|
Type of drive control |
|
AC |
|
Noise level at operator‘s ear |
(dB(A)) |
≤70 |
|
steering type |
|
Hydraulic steering |
